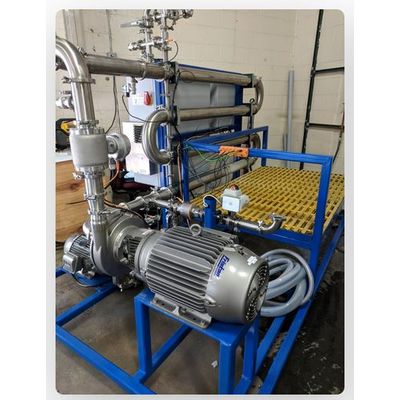

Digested - Model 400-4 Series -Stainless Steel Ultrafiltration Systems
Four 4″ diameter x 5′ long elements containing 14 UF membrane tubes each. Total filtration area: 52.8 sq.ft. Footprint: 10′ x 4′. Application: Dairy Processing.
Most popular related searches
food waste digester
food waste digestion
flow control valve
beverage wastewater
oily wastewater
ultrafiltration membrane
waste digester
waste digestion
titanium dioxide
ultrafiltration system
- Porous stainless-steel tubular membranes (3/4” ID) with internal titanium dioxide coating
- Welded and bolted construction in ASME code-stamped pressure vessel; 5′, 10’ and 20’ lengths available in any diameter
- Membranes last 10-15 years in challenging applications with little downtime, maintenance, or repair
- Simple, robust system with no internal moving parts and efficient externally mounted pump
- Flexible and Tunable: Can operate in batch-mode or continuously and be mounted horizontally or vertically
- Proudly manufactured in the USA
- Material to be filtered is pumped into the UF modules by the Feed Pump.
- The material is recirculated through the tubes in the UF modules by the Recirculation Pumps. Multiple modules can typically arranged in series to provide the required filtration area.
- Filtrate passes through the wall of the tubes and fills the module shell, exiting at the top of the module. The thickened concentrate exits through a flow control valve.,
- Manure and digestate
- Food waste digestate
- Landfill and compost leachates
- Sanitary food and beverage processing (including milk)
- Food and beverage wastewater
- Biodiesel and Oily Wastewaters
