Digga - Model SD -Excavator Screw Anchor Drives
Digga`s Supa Drive range of screw pile anchor drives produce between 45,000Nm and 90,000Nm. Fitted with our patented anti-kickback valve, which controls the rapid decompression of oil caused during the application of foundation piles, you’ll get maximum life and performance. Using only superior quality, highly volumetric efficient hydraulic motors, Digga anchor drives can be fitted with a selection of motor options to efficiently utilise the total available horsepower of your machine. Delivering consistent and efficient pile installation throughout your working day, more lineal metres in the ground, and maximum returns.
- Compact high quality Digga manufactured gearbox
- Built-in ECV (Energy Control relief Valve)
- Highest volumetrically efficient motors available
- Extreme duty shaft locking system
- No complex hoses, valving, or filtration
- 2 Speed drives available up to 380 lpm (peak) no machine detuning necessary
- 1yr gear box and 1yr motor warranty

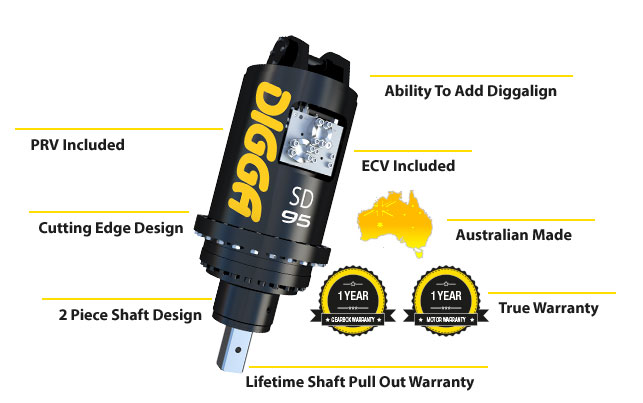

Digga drives come packed with really practical features like cutting edge design and a 2 piece shaft just to name a few. Hover your mouse over the features´ `plus` symbol on the diagram below to reveal the respective benefits.
