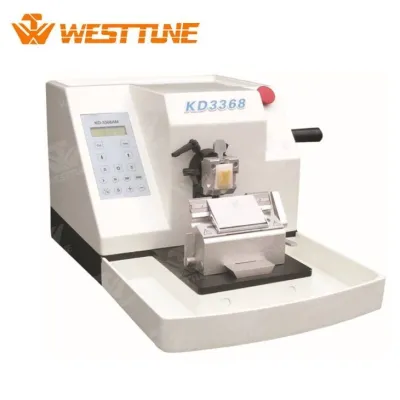

Hangzhou - Model KD-3368AM -Digital Automatic Microtome Machines
This model is developed based on semi-automatic microtome,it combine advanced and patented technology,and it`s very good choice for his topathology research. This model adopt streamline design,advanced function,stable performance,user-friendly.Specimen feed drive is controlled by intelligent control system.Manual and automated sectioning mode.Speed of sectioning can be adjusted;emergency Stop(E-stop).Precise electrical mechanical design,Ergonomic concept.
Most popular related searches
- Advanced driving systems,functions of section,trimming,fast forward,backward etc
- LCD screen shows section and trimming thickness range,numbers of section and trimming
- Section and trimming mode can be finished by controlling systems
- Handwheel can be locked at any position to assure user`s safety
- Large waste tray,easy to unload
- Universal cassette clamp and standard specimen clamp;emergency stop systems
- Manual or fully automated section mode
- Fully-automated section has two modes: single and continuous;speed of section can be adjusted
- Section and trimming mode can be exchanged easily
- Emergency stop system,overload protection function,sleep mode protection
- Emergency brake system
- Section thickness range: 0.5~100μm
- 0.5~2μm increment 0.5μm
- 2~10μm increment 1μm
- 10~20μm increment 2μm
- 20~100μm increment 5μm
- Trimming thickness range: 1~600μm
- 1~10μm increment 1μm
- 10~20μm increment 2μm
- 20~100μm increment 10μm
- 100~600μm increment 50μm
- Minimum setting value: 0.5μm
- Object feed: 28mm
- Vertical stroke: 60mm
- Specimen retraction range: 20μm
- Specimen clamp rotated at an angle of 360 degrees.
- Maximum specimen size: 50 x 50mm
- Precision error: ±5%
- Working Voltage: AC220V 50Hz / AC110V 60Hz
- Power Draw: 150VA
- Dimension: 580x360x310mm
- Net weight: 35kg
