Model X-LED Pro -Digital Borescope with 2.4mm Articulating Tip

SHARE

The New X-LED PRO digital borescopes are professional devices, with micro diameter camera heads, 2- or 4-way tip movement, clear high resolution images, multiple connection options, and quick and economic repairs. These units are designed to offer great value with a perfect price to performance ratio. These digital borescopes feature a color Hi-Res CMOS sensor with either a 0 degree straight forward angle of view, or a permanent 90 degree perpendicular side-view. Both camera chips feature intelligent image enhancement controls, built in FOLED-Hybrid-Illumination with variable brightness settings, a color temperature of 6500K, and 5000 hours of illumination per lamp.

Most popular related searches
borescope
industrial videoscope
video borescope
waterproofing
CMOS camera
videoscope
level controller
industrial borescope
air conditioning monitoring
color sensor

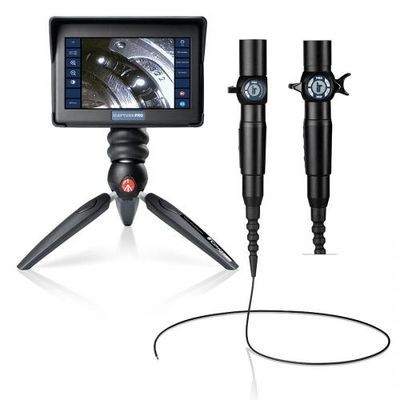

The live image from the X-LED PRO borescope can be easily displayed on a few different devices. The XCapture portable DVR is a 7” touchscreen LCD monitor, with an image and video capture, on-screen menus, comparative measurement, a digital zoom, text annotation for captured files, and a rechargeable battery, this would be the most portable option with the best features. However, there is also an option to use an adapter that would run to a 12V DC power adapter, and an video cable to directly connect to a computer via USB port to display the live image and capture media files.

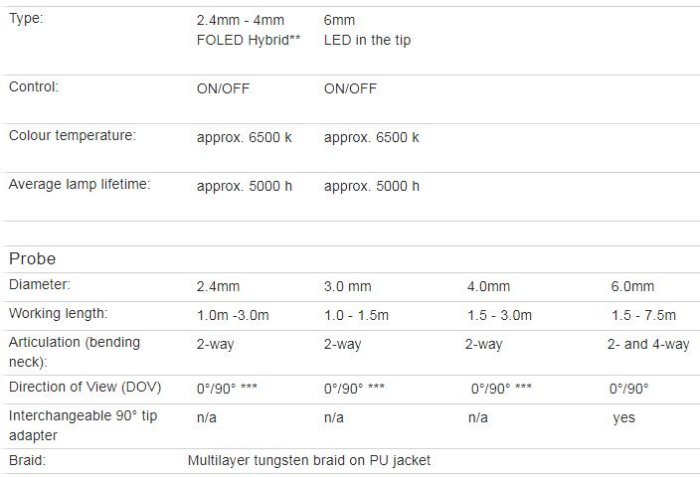

The insertion probe of the X-LED PRO available in diameter from 2.4mm (0.094 inch) to 6.0mm (0.236 inch), with a waterproof, multilayer tungsten braid over a polyurethane jacket. The probes feature 2- or 4-way (for 6mm only) tip articulation, and a probe length from 1.0m (4.9 ft.) to 7.5m (24.6 ft.).

The probe can withstand 284° F (140° C) temperature for up to 5 Minutes.

The X-LED PRO digital borescopes are made in Germany, and are a very robust and durable unit. The small diameter allows them to be used in a number of specialized inspection areas, while the ability to connect to different monitors and make them multifunctional. The design saves energy compared to larger units, and offers incredible price coupled with high resolution performance.

  • 2- and 4-way Tip Articulation
  • Narrow Diameter, from 2.4mm (0.094 inch) Probes
  • Ultra Short Articulating Tip
  • FOLED Hybrid Illumination, with up to 5000 hours of Lamp Life
  • Waterproof Tungsten Braiding
  • Advanced High Resolution CMOS Image Sensor
  • Intelligent Image Enhancement Control
  • Optional 7“ Touch Screen Display
  • Optional Direct Connection to Computer
  • Excellent Price-Performance Ratio
  • Robust and Durable, Supplied Ready to Work
  • Designed and Manufactured in Germany

Video interface

  • Digital: XCapture DVR digtal

Camera

  • Image sensor: Advanced CMOS Hi Resolution
  • Camera Control Unit: Intelligent image enhancement control
  • Input Voltage: 12 VDC
  • Power Consumption: 1,3 A

iCAPTURE PRO video imaging hub*

  • Display size: 7.0“ Wide Touchscreen Display
  • Display resolution: 1024 x 600 Pixel
  • Operating system: Live mode with intuitive multilingual menu
  • Video format: MPEG4 (.avi)
  • Image format: JPEG (.jpg), BMP (.bmp), PNG (.png)
  • Storage: 16Gb Internal memory and USB mass storage
  • Image Analysis Method: Grid, circle, line, marker
  • Camera settings functions: White balance, AGC level, shutter, gain control
  • Interface: USB
  • WiFi Live Stream Yes

Operating environment

  • Tip operating temperature: -13° F to 176° F (-25° C to +80° C), 284° F (140° C) less than 5 Minutes
  • System operating temperature: -13° F to 115° F (-25° C to +46° C)
  • Storage temperature: -13° F to 140° F (-25° C to +60° C)
  • Relative humidity: 95 % max. - non-condensing
  • Waterproof: Probe and distal end up to 14.7 psi (1 bar - 10.2 m H2O)
  • Resistance: Probe and distal end to oils and saline (5 %)
  • Carrying Case: 508 mm x 373 mm x 147 mm / 4,5 kg

Manufacturer‘s Data

  • Country of Origin: Germany / USA

* XCapture monitor is optional
** LED in the tip for side view image sensor
*** Optional 0° or 90° direction of view

Selected insertion probe, Selected 8-pin cable, Optional touch screen monitor with AC adapter, battery and battery charger.
