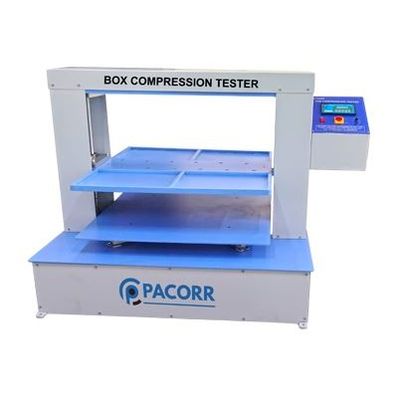

Pacorr - Model PCBCTD -Digital Box Compression Strength Tester

Corrugated or Non-Corrugated Cardboard Boxes are the most popularly used in the packaging and delivery industry. While they are stored and transported, they are subjected to a lot of vertical loads, frictional forces that may damage the integrity of the boxes or cause a deflection which can further damage the products inside. This is why it`s is vital to evaluate the strength of the cardboard boxes before they are used in the market. The Box Compression Tester (BCT) is a high standard based and precisely designed equipment that can recreate the storage or transportation scenario and exert calculative compression load. It helps in studying the impact of the compression on the boxes and the maximum amount of force that a box can bear before deflection. These test values can help the user understand the quality category of material and also their client can decide on the number which box type to opt for packaging or delivery of which product.

The Equipment comes with a moving compression plate which is equipped with load cells that ensure that the compressive load spreads uniformly to the specimen surface. This way we can ensure accuracy in results. A rigid platform for placing a wide variety of specimen sizes for the test. The tester has a digital display that helps in taking quick test readings of the force applied as well as the deflection amount of the specimen Equipped with advanced and user-friendly features like an auto-cut off facility that stops the machine once there is a deflection sensed in the testing specimen. The instrument also has the peak hold feature and can record up to ten top testing results which are helpful for future reference and analysis. The machine body has a powder coating that makes it fit for long-run use even in the harshest working environments. The box compression tester comes with different platform sizes for testing sizes of containers. The equipment is specifically designed as per international standards like ASTM D642, and ASTM D4169.

• Type: Compression
• Capacity: 500Kgf& 1000Kgf &2000Kgf
• Display: LED (Digital)
• Accuracy: ± 2% full scale (with master load).
• Least Count: 50gm & 100gm & 200gm
• Power: 220V, Single phase, 50 Hz
• Test Platform Size : 600mm x 600mm & 1000mm x 1000mm
• Test Speed: 12.5 ± 2.5 mm/min
• Speed Drive: 10mm/min to 50mm/min. (Optional)
• Standard: ASTM D642, ASTM D4169
• Options: Computerized Model Available (Model: PCBCTC)

• Microprocessor based display for accurate test results
• Highly accurate test results under uniform compression Force
• TARE and Peak Hold Facility Available
• Over travel protection
• Strong base plate with rugged structure
• Bright LED display
• Available in various platform sizes and Load Cell Capacity.
