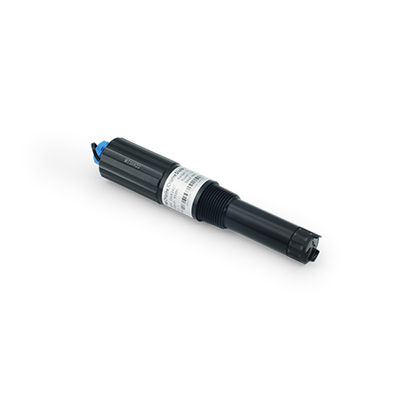

Dabeco - Model DAW2407 -Digital Chlorine/Chlorine Dioxide Probe for Tap Water

As the free chlorine or chlorine dioxide concentration in the water sample changes,the sensorgenerates different current intensities, which are processed by a regulator and signal amplifier, and converted into standard Modbus RS485 signals.

The sensor does not require the replacement of reagents during use, and is easy to maintain, ensuring the stability, reliability, and accuracy of the instrument`s long-term operation. It can be used in water plants, rural drinking water, water stations, secondary water supply, and other fields.

• RS485 communication interface, standard Modbus communication protocol
• Direct insertion in the pipeline, with a pressure resistance of 10 bar
• Measurement values are not affected by flow rate and pressure
• Continuous use on-site for 9 months without calibration and maintenance
• High measurement accuracy, fast response time, and high repeatibility
• Automatic temperature compensation

• Range:0~5mg/L
• Resolution:0.01mg/L
• Response time; Less than 30s after polarization is completed
• Accuracy (@ 25°C pH7.2):
• 0-2mg/L:        ≤0.1mg/L,   absolute error ±0.01mg/L;
• 0.1≤X≤2mg/L: relative error ±5% or ±0.03mg/L(Take the larger value)
• 2-5mg/L        : relative error ±5% or ±0.25mg/L(Take the larger value)
• pH range: 5-9, the membrane head will be damaged if it is below 5
• Sample flow rate:12-30L/H, in the flow chamber D20
• Temperature compensation: PT1000, built-in integrated automatic compensation
• Storage temperature: 0-40°C (no condensation)
• Output interface: RS485(standard MODBUS protocol)
• Power supply voltage: 12VDC ±2V or 24VDC±2V
• Power consumption: Below 0.5W
• Physical dimensions: Diameter 32mm, length 171mm
• Material:PVC and Viton°O-ring seal
• Connection method:5-core waterproof aerospace connector
• Maximum pressure: 10bar
