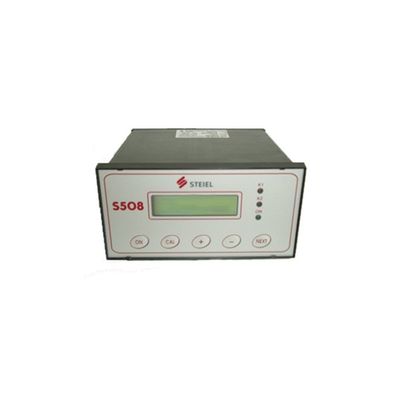

Steiel - Model S508 -Digital Controllers For Panel Installation - Professional Line

Series of microprocessor-based, single-parameter controllers Models with input for pH/redox electrode, CLE12 amperometric cell, CAC series cell, 2-electrode conductivity probe, turbidity cell, indicator with 0/4-20 mA input Input for Pt100 sensor, for temperature measurement and compensation Two relay outputs that can be configured as set point or alarm Current output, fully configurable and galvanically insulated Serial port for communication with PC, data recorder or RW14 remote control system OFF/FLOW digital input, for disabling all outputs Alarms and errors are directly shown on the display Configuration and calibration data are stored into non-volatile memory for at least 10 years 2-row alphanumeric LCD display, with backlight Multi-language menu Panel installation with supplied mounting brackets Optional front panel for IP54 protection Power supply: 230V~ (standard), 115V~, 24V~, 24V-.
