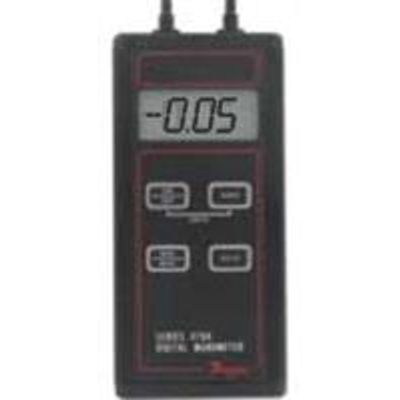

Dwyer - Model 478A -Digital Differential Manometer
FromMeterMall USA
The Series 478A Dwyer Manometer can be used to measure positive, negative, or differential pressures. The unit features selectable units, auto zero, hold and a Min/Max function. Press the Hold key to freeze the current pressure measurement on the display. The 478A manometer includes a zeroing button to null out any minor pressure differences.
Most popular related searches
-
Measure Positive and Negative Pressures.
-
One-Button Auto-Zero Function.
-
Auto Power Off.
-
Large, Easy-to-Read Display.
-
Extruded Aluminum Case.
-
Instant Selection from up to Eight English/Metric Units.
-
Service: Air and compatible gases.
-
Wetted Materials: Consult factory.
-
Accuracy: ±1.5% F.S. @ 72°F (22.2°C). Includes linearity and repeatability.
-
Pressure Hysteresis: ±0.1% of F.S.
-
Pressure Limits: 5 psig (.34 bar).
-
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
-
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
-
Thermal Effect: 0.05% F.S./°F.
-
Display: 4 digit LCD (.425"H x .234"W digits).
-
Power Requirements: 9V alkaline battery. Battery included but not connected.
-
Process Connections: Barbed connection for use with 3/16" or 1/4" I.D. tubing.
-
Weight: 10.8 oz (306 g).
-
Agency Approvals: CE.
-
Warranty 1 year
