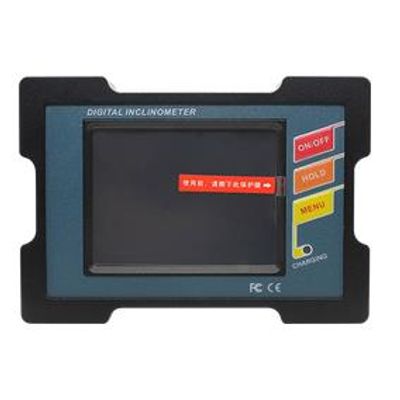

RionModel DMI810 -Digital Display Inclinometer

SHARE

DMI810 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability.

Most popular related searches
  • Best accuracy:<0.005°
  • Repeatability:0.003°
  • Angle resolution:0.001°
  • Maximum measure range:±30°
  • Absolute/Relative measurement can switch
  • Data store function
  • User can set the alarm value by himself

Single and double axis measurement, measurement range ±30° measurement, resolution 0.001°, highest accuracy

  • Shell size: L109×W77×H27mm
  • Installation method : Two-sided strong magnetic adsorption installation
