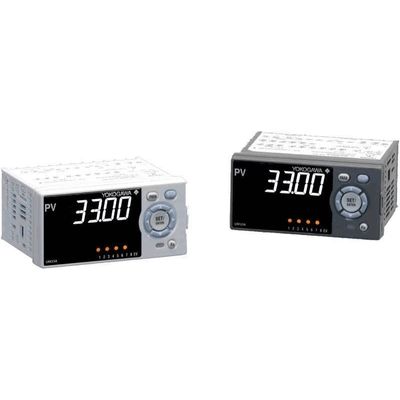

Yokogawa - Model UM33A -Digital Indicator with Alarms

The UM33A is a digital indicator with alarms provides up to 9 alarms outputs and input correction function (PV bias, Polygonal line approximation, polygonal line bias). Also, 24 VDC sensor power supply is available as an option.

• PV bias, polygonal line approximatin, and polygonal line bias
• 24 VDC sensor power supply available

• Easy-to-read, 14-segment large color LCD display
• Scrolling text feature for parameters
• Navigation guide & navigation keys
• Programmable funciton keys
• User settable default values
• Multiple language support (English, Spanish, French, German)
• Compact design of 65-mm depth

• RS-485 (Modbus/RTU, peer to peer, coordinated,   PC-Link,  CC-Link)
• RS-485 (Modbus/RTU data monitoring function, Modbus/RTU master function)  →Click Here

• 3 year warranty^*1
• RoHS/WEEE
• NEMA4^*2/IP66 front panel

• LL50A parameters setting software with the ladder program building function (sold seperately)

*1: The 3 year warranty extendes 36 months
*2: Hose-down test only
