Impac - Model IN 500 Series -Digital Infrared Thermometers for Non-Contact Temperature Measurement, -40 to 700°C
Advanced Energy`s Impac IN 500 series includes the IN 510 and IN 520 and are digital pyrometers with miniature sensor heads for non-contact temperature measurement of non-metallic or coated metallic surfaces. Suitable for measuring temperature ranges between -40 and 700°C. Sensor head and cable usable in ambient temperature up to 85 or 180°C without cooling, dependent on the type. Field of View: 10:1 or 2:1.

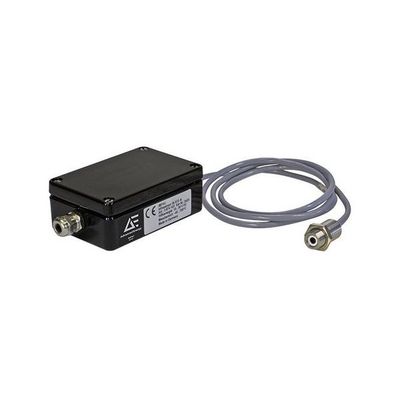

The Impac IN 510 and IN 520 digital pyrometers each have a separate, stainless steel miniature sensor heads. The sensor head/cable of the 510 models are usable in ambient temperatures without cooling up to 85°C. The sensor head/cable of the 520 models are usable in ambient temperatures without cooling up to 180°C. The 520 models can also be used as a temperature switch.
The IN 510-N, IN 510, IN 520-N, and IN 520 are digital pyrometers for non-contact temperature measurement of non-metallic or coated metallic objects.
The versions IN 510 and IN 520 are equipped with an illuminated LC display that shows the actual temperature reading. The types IN 510-N and IN 520 do not have a display and keyboard and are parametrized via interface.
- Install in small, harsh industrial environments
- Use in ambient temperature up to 70°C without cooling
- Adjust emissivity between 40 to 100%
- Easy electrical and mechanical installation
- Very small housing dimensions
- Small spot sizes (distance ratio 15:1)
Temperature Range
IN 500 Series
- -40 to 700°C
Sub range: Adjustable; minimum range 51°C; ex works preadjusted to 0 to 500°C
Measurement
Spectral Range
8 to 14 µm
Measurement Uncertainty
See data sheet
Repeatability
- 0.5% of reading in °C or 0.5°C
The larger value is valid. The sensor head must be in constant ambient temperature for at least 15 minutes
Exposure Time t90
180 ms; switchable: 0.5 s, 1 s, 2 s, 5 s, 10 s, or 30 s
Emissivity ε
10 to 120% adjustable in steps of 0.1%
Optical
Optics
Two fixed optics
Sensor Head
Stainless steel
Interface and Communication
Analog Output
Linear current (0 or 4 to 20 mA), voltage (0 to 5 V) or thermocouple (type J or K)
Digital Interface
Switchable RS232 and RS485
Display
LCD, four-digit, three values per second, display illumination permanent
Environmental
Protection Class
- IP65 (converter, sensor head 10:1, IN 520-sensor head 2:1)
- IP20 (IN 510-sensor head 2:1)
Ambient Temperature
- Converter: 0 to 65°C (32 to 149°F)
- 510 Sensor Head Types: 0 to 85°C (32 to 185°F)
- 520 Sensor Head Types: 0 to 180°C (32 to 356°F)
Storage Temperature
- Converter: -20 to 70°C (-4 to 158°F)
- 510 Sensor Head Types: -20 to 85°C (-4 to 185°F)
- 520 Sensor Head Types: -20 to 180°C (-4 to 356°F)
Relative Humidity
10 to 95%, non-condensing
Weight
0.320 kg (0.705 lb)
Housing
- Converter: Aluminium
- Sensor Head: Stainless steel
CE Label
According to EU directives about electromagnetical immunity
Electrical
Power Supply
10 to 30 VDC, ripple < 0.5 V
Power Consumption
Maximum 60 mA
Load
Maximum 700 W at 24 V power supply (for current output) (500 W / 20 V)
Isolation
Isolated relays contact, 50 VDC, 0.2A; temperature and hysteresis adjustable
Typical Applications
- Non-metallic or coated metallic temperature measurement
