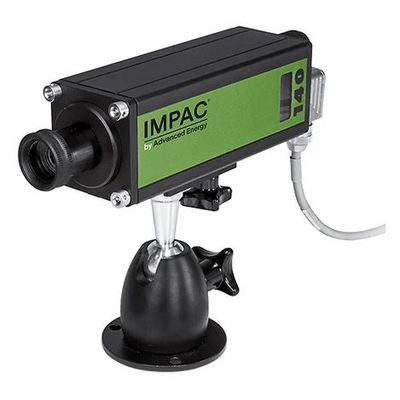

Impac - Model IPE 140 Series -Digital Pyrometer with Focusable Optics for Non-Contact Metal Temperature Measurement

SHARE

Digital Pyrometer with Focusable Optics for Non-Contact Temperature Measurement on various surfaces. Temperature ranges between 5 and 2000 °C. The digital Impac® IPE 140 pyrometers are renowned for their high accuracy and feature a range of focusable optics for extremely small spot sizes. These devices include an integrated keypad for selecting parameters, and an in-built LC-display that indicates the current settings. In the measurement mode, it displays the actual temperature, with the basic IPE 140 models boasting a temperature range from 5 to 1200 °C.

Most popular related searches
non-contact temperature monitoring
contact temperature monitoring
temperature monitoring
digital pyrometer
pyrometer
temperature indicator
emissions control
metal thickness monitoring
alignment laser
furnace
The IPE 140 is available in special wavelength versions to cater to different needs: The IPE 140/34 is specifically designed for measuring thin PE and PP foils within a temperature range of 50 to 500 °C. For flame-heated furnace applications, the IPE 140/39 can see through clean combustion flames and hot gases, operating in temperature ranges from 20 to 1800 °C. Lastly, the IPE 140/45 is apt for measuring combustion flames and hot gases containing Co2, within a temperature range of 40 to 2000 °C.
  • Test current output
  • Housing with precision mounting rail for safe mounting and accurate alignment
  • Interface RS232 / RS485 switchable
  • Focusable optics

  • Easily select parameters via keypad
  • Reduce emissivity errors
  • Safely mount and accurately align
  • Detect small objects
  • IPE 140/34: Measure thin PE and PP foils with a material thickness of only 30 µm
  • IPE 140/39: Measure temperature through flames and combustion gases without error
  • IPE 140/45: Measure flame temperatures of hot combustion gases

  • Operational temperature range (°C): 5 and 2000 °C (10 ranges in between)
  • Spectral Range (µm): 3 and 5 (4 ranges in between)
  • Measurement Uncertainty (°C): From 0.4% oR + 1 °C
  • Optics (mm): Focusable optics
  • FOV (minimum spot size) (mmm): Min 200:1 (0.7)
  • Alignment / Sighting: Laser targeting or through lens sighting
  • Interface / Output (mA): 0/4 to 20 mA
  • Exposure Time t90 (ms): 1.5 ms
  • Ambient Temperature (°C): 0 to 53
  • Resolution (°C): 0.1
  • Display: Illuminated LC display for temperature indication or parameter settings
  • Protection Class: IP65 (DIN 40 050)
  • Emissivity: 10 to 100% adjustable in 0.1% steps
  • Weight (kg): 0.55
  • Connection: 12-pin connector
  • Operating Position: Any
  • CE-label: According to EU directives about electromagnetical immunity
  • Parameters / Settings: Adjustable at the instrument or via serial interface: emissivity; exposure time; analog output; address; baud rate; waiting period; °C or °F; setting of the maximum value storage; temperature sub range
  • Isolation: Power supply, digital interface, analog output are galvanically isolated against each other and housing
  • Wavelength Repeatability (pm): 0.1% oR + 1 °C
