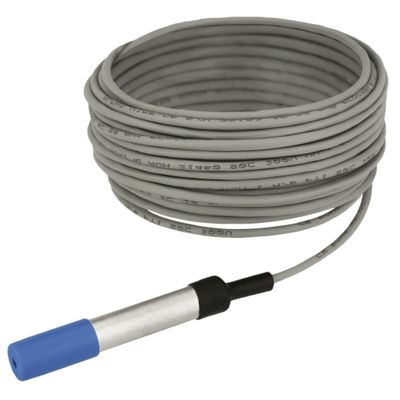

AVTECH - Digital Shielded Temperature and Humidity Sensors (25`)

Each AVTECH Digital Shielded Temperature & Humidity Sensor provides real-time temperature values from -40 to 185 degrees Fahrenheit and/or -40 to 85 degrees Celsius. Accuracy is within + / - 2 C degrees. The humidity range is from 5% to 95% relative humidity (RH) non-condensing. Humidity accuracy is within +/- 4.5% RH at 5 to 59% RH and within +/- 6.5% RH at 60 to 95% RH.

This is a dynamic sensor that feeds temperature and humidity in real-time data back to the Room Alert monitor for data logging, alerting and automatic corrective action. The shielded sensor cable is ideal for use in environments with high electrical noise or EMI. This is an instant `Plug & Play` sensor via one of the standard RJ-11 jacks on any compatible Room Alert monitor.

AVTECH offers this sensor with cable lengths of 25`, 50` and 100`.

Digital Shielded Temperature & Humidity Sensor

• Environment Condition Monitored: Temperature & Humidity
• Real-Time Recognition: Yes, Temperature & Humidity
• Digital Temperature Sensor Range: -40 to 185 F (-40 to 85 C)
• Digital Temperature Sensor Accuracy: + / -  2 C
• Digital Temperature Sensor Resolution: 0.03125 C
• Digital Humidity Sensor Range: 5% to 95% RH Non-Condensing
• Digital Humidity Sensor Accuracy
• + / -  4.5% at 5 to 59% RH
• + / -  6.5% at 60 to 95% RH
• Power Supply: Monitoring Unit
• Digital Sensor Cable Type: Foil shielded, mPPE insultated RJ-11 Cable
• Digital Sensor Cable Length: 25`
• Maximum Digital Sensor Cable Length: Approximately 100`
• Compatible Products: Room Alert 32S, 12S, 3S, 32W, 32E, 12E, 4E, 3E & 3W

The AVTECH Digital Shielded Temperature & Humidity Sensor Includes:

(1) Digital Shielded Temperature & Humidity Sensor w/25` RJ-11 sensor cable

• Installation Note & Instruction Sheet
• 90-Day Warranty & Replacement Guarantee
• AVTECH`s many years of experience since 1988
