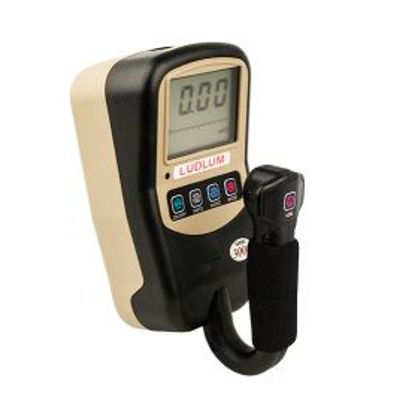

Ludlum - Model 3000 -Digital Survey Meter
The Ludlum Model 3000 is a versatile, lightweight, ergonomically-designed instrument used with an external detector for alpha, beta, or gamma radiation survey. Three modes of operation – RATE, MAX, and COUNT – are available for the user. Measurements can be collected in two sets of units (primary and secondary) for RATE and MAX modes in cps, cpm, Bq, dpm, mR/hr, or µSv/h units. The user can switch between two sets of chosen units by simply pressing the Units button.
The standard handle includes the LOG pushbutton that allows the instrument to log up to 1000 data points when activated with the optional Lumic Datalogging Kit. See the Options tab for more information.
An internal switch is used to enable or disable the front-panel setup feature to protect desired settings from inadvertent modification. Setup is also available via software available from Ludlum Measurements. User-adjustable settings include calibration constant, dead time correction, efficiency, high voltage, pulse threshold, response time (fast or slow), count time, operational modes, HV current overload level, operational mode (Rate, Max, or Count), and minimum and maximum display levels. The user may also set Primary and Secondary units, unit alarm levels, count units, count alarm levels, and zero pulse protection time limit.
This instrument features a large, easily-readable LCD (liquid crystal display), an audio warning tone, and easy, intuitive, user-friendly design. Splash-resistant construction allows the Model 3000 to be used outdoors. The instrument body is made of lightweight, durable, high-impact plastic. The Model 3000 is shipped ready to use with batteries and calibration certificate.
The Model 3000 Series of Digital Survey Meter is available with several options that enable the user to further exploit the many features of this instrument. Several of these options are listed on the Options tab and on the Options Data Sheet found on the Documents tab.
- Large Backlit LCD for Ease of Reading
- Auto Ranging
- Rate, Max, and Count Modes of Operation
- Splash-Resistant Construction for Outdoor Use
- 4-Button Intuitive Interface for Easy Operation
- All-Digital Calibration
- USB Port
- Lighter Weight yet Ruggedly Built
