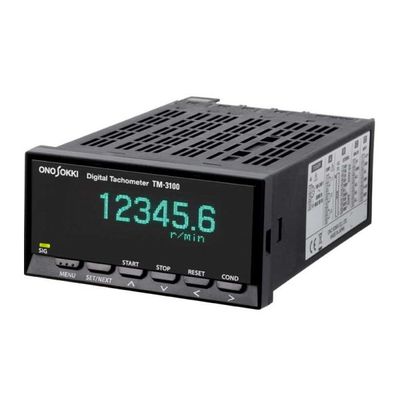

OnoSokki - Model TM-3100 Series -Digital Tachometers
Introducing our new tachometer with a clear display and ability to add functions separately and easily. The fluorescent display tube of TM-3100 series greatly improves stability and readability instead of using LED as old models.
Most popular related searches
- Flexible tachometer allows you to customize by adding cards
- Add and subtract functions that match your current application
- Highly compatible with personal computers and controllers
- TM-3110 "Basic model for measurement and display
- TM-3120 "With BCD output of 6-digit display "Open collector output for direct connection with a PLC*. *Output can be optionally changed as TTL level
- TM-3130 "With analog output (Output signal is selectable from voltage or current.)
- TM-3140 "With comparator function Up to three combinations of upper/lower-limit determination can be setup.
- TM-0301 Optional DC Power Module
- Please Download Brochure for complete details !
- Display : Fluorescent tube (selectable of three stage brightness) 6-digit green
- Display Update : Selectable from 0.2s, 0.4s, 0.5s, 0.6s0.8s,1.0s to 10s (in 1.0s steps)
- SIG Indicator : Blinks synchronized with input signals
- Error Display : Backup memory error, board error, input frequency error, display digit error, memory full error, step error.
- Units : r/s, r/min, r/h, mm/s, m/s, mm/min, km/min, mm/h, m/h, Hz, kHz, ml/s, ml/min, ml/h, l/s
- Power Supply for Detectors : Output voltage : 12VDC (± 10%), Max. current : 100mA
- Power Supply : 100 to 240VAC, 50/60 Hz
- Operating temperature : 0 to +50°C / 32 to 122° F
- Outer Dimensions : 96(W) x 48(H) x 148(D) mm
- Weight : approx. 310g
- Description : Replacement for TM-2100 Series Tachometers
