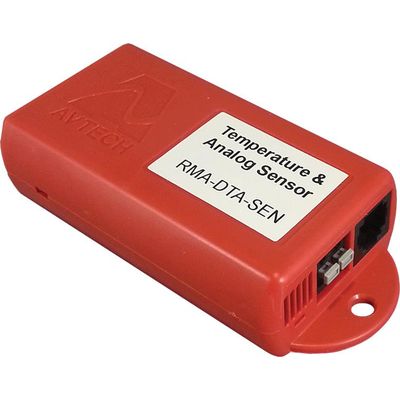

AVTECH - Digital Temperature & Analog Sensor

Each AVTECH Digital & Analog Temp Sensor provides real-time temperature values from -40° to 185° Fahrenheit and/or -40° to 85° Celsius. Accuracy is within + / - 2 C degrees. The analog range is from 0 to 5 VDC. Accuracy is within + / - 0.075 volts.

This is a dynamic sensor that feeds temperature and analog data in real-time data back to the Room Alert monitor for data logging, alerting and automatic corrective action. This is an instant `Plug & Play` sensor via one of the standard RJ-11 jacks on any compatible Room Alert monitor.

Digital Temperature & Analog Sensor

• Environment Condition Monitored: Temperature & Analog
• Real-Time Recognition: Yes, Temperature & Analog
• Digital Temperature Sensor Range: -40 to 185 F (-40 to 85 C)
• Digital Temperature Sensor Accuracy: + / -  2 C
• Digital Temperature Sensor Resolution: + / -  0.03125 C
• Digital Analog Sensor Range: 0 to 5 VDC
• Digital Analog Sensor Accuracy: + / -  0.075V
• Digital Analog Sensor Resolution: + / -  0.01V
• Power Supply: Monitoring Unit
• Digital Sensor Cable Type: RJ-11 Cable
• Digital Sensor Cable Length: 25`
• Maximum Digital Sensor Cable Length: Approximately 100`
• Compatible Products: Room Alert 32S, 12S, 3S, 32W, 32E, 12E, 4E & 3E

The AVTECH Digital Temperature & Analog Sensor Includes:

(1) Digital Temperature & Analog Sensor w/25` RJ-11 sensor cable

• Installation Note & Instruction Sheet
• 90-Day Warranty & Replacement Guarantee
• AVTECH`s many years of experience since 1988
