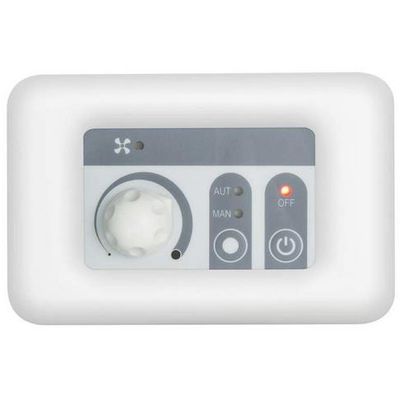

TiEmme - Model FC330 -Digital Temperature Controller
The FC330 controller completely and effectively manages the heating system. Through a probe it reads the air temperature of the exchangers and it regulates with the highest efficiency the ventilation according to the type of fan, installation, canalisation.
Most popular related searches
Fan control is managed with two modalities:
MANUAL
The fan works at the speed the user sets, independently to the temperature read by the probe
AUTOMATIC
The fan starts working at the speed the user sets, when the temperature is over the chosen value SET
- Supply Voltage : 230 V / 50 HZ
- CE Compatibility : Filter EMI on board
- Fuse : T 2A
- Temperature probe : Electronic Sensor NTC100K high temperature
- Aux Input : Ambient Probe / Ambient thermostat
- Fan Control : Electronic control 10 speeds
- Power max : 250 W
- Aux output : ON/OFF – 5A – 250 Vac
- Mechanical Dimensions : Box 3 module inbox/wall
- Plate : TiEmme elettronica, AVE Sistema 45, VIMAR Linea Idea
- Placca: Rounded Black, Rounded White, Squared Black, Squared White
