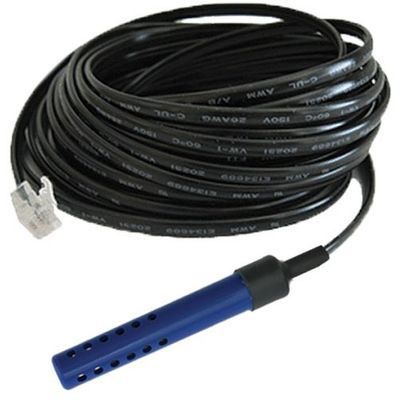

AVTECH - Digital Temperature & Humidity Sensor (100`)

Each AVTECH Digital Temperature & Humidity Sensor provides real-time temperature values from -40 to 185 degrees Fahrenheit and/or -40 to 85 degrees Celsius. Accuracy is within + / - 2 C degrees. The humidity range is from 5% to 95% relative humidity (RH) non-condensing. Humidity accuracy is within +/- 4.5% RH at 5 to 59% RH and within +/- 6.5% RH at 60 to 95% RH.

This is a dynamic sensor that feeds temperature and humidity in real-time data back to the Room Alert monitor for data logging, alerting and automatic corrective action. This is an instant `Plug & Play` sensor via one of the standard RJ-11 jacks on any compatible Room Alert monitor.

AVTECH offers this sensor with cable lengths of 25`, 50` and 100`.

Digital Temperature & Humidity Sensor

• Environment Condition Monitored: Temperature & Humidity
• Real-Time Recognition: Yes, Temperature & Humidity
• Digital Temperature Sensor Range: -40 to 185 F (-40 to 85 C)
• Digital Temperature Sensor Accuracy: + / -  2 C
• Digital Temperature Sensor Resolution: 0.03125 C
• Digital Humidity Sensor Range: 5% to 95% RH Non-Condensing
• Digital Humidity Sensor Accuracy:
• +/- 4.5% at 5 to 59% RH
• +/- 6.5% RH at 60 to 95% RH:
• Power Supply: Monitoring Unit
• Digital Sensor Cable Type: RJ-11 Cable
• Digital Sensor Cable Length: 100`
• Maximum Digital Sensor Cable Length: Approximately 100`
• Compatible Products: Room Alert 32S, 12S, 3S, 32W, 32E, 12E, 4E, 3E & 3W

The AVTECH Digital Temperature & Humidity Sensor Includes:

(1) Digital Temperature & Humidity Sensor w/25` RJ-11 sensor cable

• Installation Note & Instruction Sheet
• 90-Day Warranty & Replacement Guarantee
• AVTECH`s many years of experience since 1988
