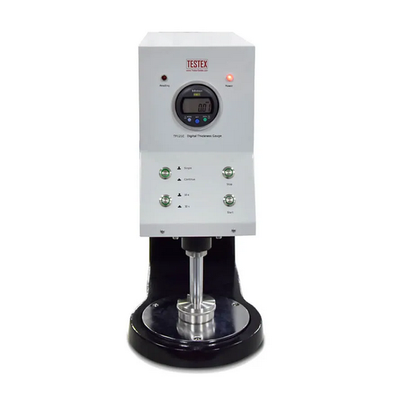

Testex - Model TF121C -Digital Thickness Gauge

Digital Thickness Gauge(meter) TF121C provides a determination of the thickness of textiles and textile products like woven and knitted fabrics under a specified pressure. This fabric thickness tester features automatic lifting up and down to avoid manual operation error by presetting pressing time for 10s or 30s, available with two unit modes in mm and inch.

TESTEX Thickness Tester TF121C applies to textile materials thickness tests, all kinds of woven fabrics, knitted fabrics, non-fabrics thickness tests, and non-woven materials thickness tests, such as diapers and sanitary napkin sheets. It is one of the most popular thickness measurement instruments.

• Range of thickness: 0.01~25mm (optional: 0.001~25mm)
• Measuring accuracy: 0.01mm
• Lowering the speed of pressing foot: 1.72 mm/s
• Area of pressing foot: 100mm², 2000mm², 2500mm², 10000mm²
• Load Weight: 2cN x 2, 5cN x 1, 10cN × 2, 50cN × 2, 100cN x 1, 400cN x 1, 1000cN × 2
• Pressing Duration: 10s, 30s

• Model: TF121C
• Standards: ISO 5084, ISO 9073-2 method A,GB/T24218.2 Method A, JIS L1096 Item 8.4 Method B
• Power: 220 V, 50 Hz, 3 A, 100 W
• Weight: 37 Kg
• Dimensions: 210 mm * 450 mm * 450 mm

• Testing accuracy up to 0.01mm, to meet the high requirements of textile laboratories.
• Two modes to choose from, single test and continuous test, and two types of press time, 10S or 30S.
• The instrument adopts an electric lifting bar, weight pressure, automatic timing, and automatic display of the value, the operation is very convenient, and the data is accurate, avoiding manual error. Very smart thickness gauge meter.
• A compact size can be placed on the desktop to save space.
