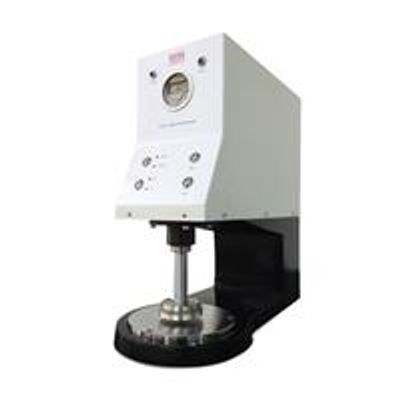

Testex - Model TF121 -Digital Thickness Gauge
Digital Thickness Tester, to determine the thickness of various woven and knitted fabrics under a certain pressure. Digital Thickness Tester complies with ISO5084, ISO9073, ISO9863, etc. We are professional Digital Thickness Tester suppliers.
Most popular related searches
Weight
- 70 kg
Power/Air Source
- 220 V 50 Hz 40 W
Dimension
- Length: 410 mm Width: 160 mm Height: 300 mm
Standards
- ISO 5084 ISO 9073 ISO 9863 GB 3820
- FZ/T 01003
- Digital Thickness Gauge, to determine the thickness of various woven and knitted fabrics under a certain pressure. Automatic lifting up and down avoiding manual operation error by presetting pressing time for 10s or 30s, available with two unit mode in mm and inch.
- Digital display
- Range of thickness: 0.01~25mm or 0.001~25mm
- Measuring accuracy: 0.01mm or 0.001mm
- Lowering speed of pressing-foot: 1.72 mm/s
- Area of pressing foot: 100mm2, 2000mm2, 2500mm2, 10000mm2
- Load Weight: 20cN, 100cN, 200cN, 500cN, 2000Cn
- Pressing duration: 10s, 30s
