Mark-10 - Model TT01 Series -Digital Torque Gauges and Testers
Mark-10 offers a range of digital torque gauges and testers designed for precision torque measurement across various applications. These devices allow for peak torque capture in both clockwise and counter-clockwise directions with selectable measurement units. Torque capacities vary from 10 ozFin to 5,000 lbFin, accommodating different testing needs. These instruments can be handheld or used with test stands and gripping fixtures for comprehensive torque testing solutions and carry the CE mark for conformity. Mark-10 emphasizes accuracy as a key feature, providing detailed guidelines on understanding and calculating measurement errors based on instrument full-scale percentages. Their devices have a sampling rate capability of up to 14,000 Hz internally, ensuring accurate peak load capture, especially in rapid-load scenarios. With defined capacity and resolution specifications, these instruments are structured to offer precise load measurements for technical applications.

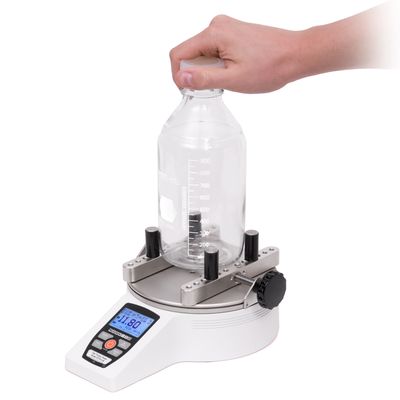

Series TT01 Cap Torque Testers are designed to measure application and removal torque of bottle caps up to 100 lbFin [11.5 Nm]. Adjustable posts effectively grip a wide range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments.
Class-leading accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.
The TT01 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First/second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures.
TT01 series testers include MESUR ® Lite data acquisition software. MESUR ® Lite tabulates continuous or single point data. Data stored in the TT01's memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.
- Moveable 1.25" (31 mm) length posts accommodate a wide range of sample shapes and sizes
- Available extended post lengths and other gripping options
- USB, RS-232, Mitutoyo, and analog outputs
- Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
- First / second peak detection for slip and breakaway torques in tamper evident closures
- 1,000-point data memory with statistics and outputs
- Password protection prevents unauthorized changes
- Programmable set point indicators and outputs for pass/fail determination
- High-speed 7,000 Hz sampling rate accurately captures peak torque values
- Configurable audio alarms and key tones
- 5 selectable units of measurement
- MESUR ® Lite data collection software included
