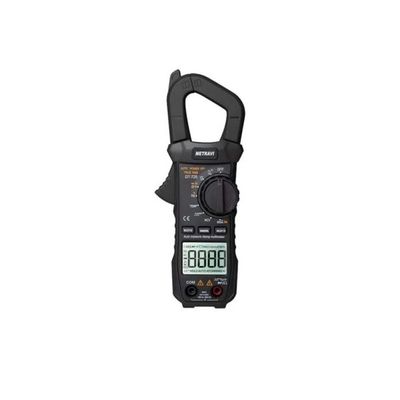

Metravi - Model DT-725 -Digital TRMS AC/DC Clamp Meter
3-5/6-digit 5999 Count, Backlight LCD, T-RMS, Auto-Ranging, NCV, Flashlight, Relative Measurement, AC(750V)/DC(1000V) Voltage, 600A AC/DC Current, Resistance, Capacitance, Frequency, Temperature, Diode & Continuity. Square Wave Output, CAT-IV 600V.
- Model : DT-725
- AC Current Range : 0-60A/600A
- AC or AC/DC : AC/DC
- AC Voltage Range : 0-6V/60V/600V/750V
- Auto Power Off : Auto Power-off
- Capacitance Range : 0-60nF/600nF/6uF/60uF/600uF/6mF/30mF
- DC Current Range : 0-60A/600A
- DC Voltage Range : 0-6V/60V/600V/1000V
- Diode & Continuity : Diode & Continuity test
- Flashlight : Flashlight for working in dark areas
- Frequency Range : 0-60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz
- NCV Detection : Non-contact Voltage Detection
- Resistance Range : 0-600Ω/6kΩ/60kΩ/600kΩ/6MΩ/40MΩ
- T-RMS : TRMS in AC Current & Voltage
- Warranty : One year against manufacturing defects
- Brand : Metravi
- Colour : Black
- Auto Ranging : Auto Ranging
- Display : Backlit LCD
- Relative Measurement : Relative Measurement
- Data Hold : Data Hold
- Temperature Range : -20°C to 1000°C
- Sampling Time : 3 times/sec
- Overload Indication : Overload Indication
- Low Battery Indication : Low Battery Indication
- Power Source : Battery Operated
- Battery Type : Alkaline
- Battery Size : AAA
- No of Batteries : 2
- Jaw Dia : 33mm
- Temperature Accuracy : ±1.0%
- Frequency Accuracy : ±0.1%
- Resistance Accuracy : ±0.8%
- Capacitance Accuracy : ±3.5%
- DC Voltage Accuracy : ±0.5%
- AC Voltage Accuracy : ±0.8%
- DC Current Accuracy : ±2.0%
- AC Current Accuracy : ±2.0%
- DC Voltage Resolution : 0.001V to 1V
- AC Voltage Resolution : 0.001V to 1V
- DC Current Resolution : 0.01A to 0.1A
- AC Current Resolution : 0.01A to 0.1A
- Resistance Resolution : 0.1Ω to 10kΩ
- Capacitance Resolution : 10pF to 10uF
- Frequency Resolution : 0.01Hz to 10kHz
- Temperature Resolution : 1°C
- Certifications : CAT IV 600V
- 3-5/6 Digit, 6000 Count, Backlight LCD
- T-RMS
- Auto Ranging
- NCV
- Flashlight for accessing dark areas
- Relative Measurement
- Data Hold
- AC Voltage: 0-6/60/600/750V
- Accuracy: ± (0.5%+3)
- DC Voltage: 0-6/60/600/1000V
- Accuracy: ± (0.8%+3)
- AC Current: 0-60/600A
- Accuracy: ± (2%+30)
- DC Current: 0-60/600A
- Resistance: 0-600/6K/60K/600K/6M/40M Ohms
- Accuracy: ± (0.8%+3)
- Capacitance: 60nF/600nF/6uF/60uF/600uF/6mF/30mF
- Accuracy: ± (3.5%+20)
- Frequency: 0-10/100/1K/10K/100K/1M/10MHz
- Accuracy: ± (0.1%+3)
- Temperature: -20°C to 1000°C
- Accuracy: ± (1.0%+5)
- Diode & Continuity test
