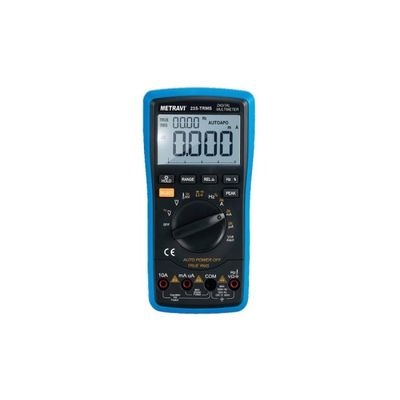

Metravi - Model 23S-TRMS -Digital TRMS Multimeter
4-1/2 Digits 19,999 Counts, T-RMS, Backlit LCD, NCV, Data Hold, Peak Hold, Relative, Auto Power Off, Dual Display to show Voltage & Current with Frequency on the same screen, AC/DC Voltage, AC/ DC Current 10A, Resistance, Capacitance, Temperature, Frequency, Diode & Continuity Test both Audio and Visual.
Most popular related searches
- Model : 23S-TRMS
- Brand : Metravi
- Warranty : One year against manufacturing defects
- Display : Backlit LCD
- Colour : Blue-Black
- T-RMS : T-RMS
- Data Hold : Data Hold
- Peak Hold : Peak Hold
- Relative Measurement : Relative Measurement
- NCV Detection : Non-contact Voltage Detection
- Auto Power Off : Auto Power-off
- Diode & Continuity : Diode & Continuity test
- DC Voltage Range : 0-200mV/2V/20V/200V/1000V
- DC Voltage Accuracy : ±0.05%
- AC Voltage Range : 0-200mV/2V/20V/200V/750V
- AC Voltage Accuracy : ±0.06%
- DC Current Range : 0–200uA/2000uA/20mA/200mA/10A
- DC Current Accuracy : ±0.5%
- AC Current Range : 0–200uA/2000uA/20mA/200mA/10A
- AC Current Accuracy : ±0.5%
- Resistance Range : 0–200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
- Resistance Accuracy : ±0.3%
- Capacitance Range : 0–20nF/200nF/2uF/20uF/200uF/2000uF
- Capacitance Accuracy : ±3.0%
- Frequency Range : 0–10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/20MHz
- Frequency Accuracy : ±0.01%
- Temperature Range : -20°C to 1000°C
- Power Source : Battery Operated
- Battery Type : Alkaline
- Battery Size : 9V
- No of Batteries : 1
- Low Battery Indication : Low Battery Indication
- Overload Indication : Overload Indication
- Sampling Time : 3 times/sec
- Auto Ranging : Auto Ranging
- Temperature Accuracy : ±1.0%
- DC Voltage Resolution : 0.01mV to 0.1V
- AC Voltage Resolution : 0.01mV to 0.1V
- DC Current Resolution : 0.01uA to 0.1A
- AC Current Resolution : 0.01uA to 0.1A
- Resistance Resolution : 0.01Ω to 1kΩ
- Capacitance Resolution : 1pF to 100nF
- Frequency Resolution : 0.001Hz to 1kHz
- Temperature Resolution : 1°C
- Display: 20000 Counts, 4-1/2 Digits, Backlit LCD display
- T-RMS Measurements of Voltage and Current
- Data Hold, Peak Hold
- Relative Measurement
- Non Contact Voltage Detection
- DC Voltage: 0–200m/2/20/200/1000V
- Accuracy: ± 0.05%
- AC Voltage (T-RMS): 0–200m/2/20/200/750V
- Accuracy: ± 0.06%
- DC Current: 0–200u/2000u/20m/200m/10A
- Accuracy: ± 0.5%
- AC Current (T-RMS): 0–200u/2000u/20m/200m/10A
- Accuracy: ± 0.5%
- Resistance: 0–200/2k/20k/200k/2M/20M.Ohms
- Accuracy: ± 0.3%
- Capacitance: 0–20n/200n/2u/20u/200u/2000uF
- Accuracy: ± 3.0%
- Frequency: 0–10/100/1k/10k/100k/1M/20MHz
- Accuracy: ± 0.01%
- Temperature: -40 to 1000 °C
- Accuracy: ± 1.0%
- Diode & Continuity Test Facility
- Auto Power Off
- Maximum display: 20000 (41/2) bit automatic polarity display
- Measurement method: double integral A/D conversion
- Sampling rate: about 3 times per second
- Over-range display: the highest bit was “OL”
- Low voltage display: Battery symbol appears
- Working environment: (0 ~ 40) ?, relative humidity
- Power: 9V (NEDA1604/6F22)
- Size: 184 *90 *46mm (length ,width and height)
- Weight: about 320g (including 9V battery)
- Accessories: A manual, Test Certificate, a pair of test leads, K-type thermocouple.
