Fluidwell - Model D053 -DIN Panel Mount - Pressure Monitor
FromFluidwell bv

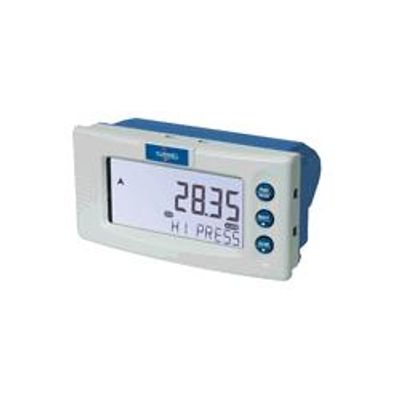

The D053 is a versatile, panel mount pressure indicator with continuous pressure monitoring feature. It offers the facility to set one low pressure and one high pressure alarm value. If desired, an ignore function can be set up to allow for an incorrect pressure for a certain period of time
Most popular related searches
- Unique, robust IP66, IP67 (NEMA Type4X) panel mount front enclosure made of die cast aluminum, allowing even big jets of water and total immersion.
- Programming can be done by your own crew with the exact same, plain and sensible menu-driven structure like the F-Series, saving cost and irritation. Know one, know them all!
- Displays actual pressure and alarm values.
- Two alarm values can be entered: low and high pressure alarm.
- Pressure: six large 17mm (0.67) digits.
- Selectable on-screen engineering units:
mBar - Bar - PSI. - Ambient temperature: -40°C to +80°C (-40°F to 176°F).
- Red flashing LED backlight in case of a pressure alarm.
- Aluminum DIN front panel of 144 x 72mm (5.67" x 2.83") according DIN 43700 / IEC 61554.
- Various accessories are available for this product.
- The D-Series is a DIN-sized display and the better alternative for your existing, not waterproof, front panel mount indicators in extreme weather outdoor applications or e.g. in food industries where working environments are often cleaned with powerful water jets.
- The D053 fits in applications where continous pressure measurement and monitoring is important.
Alternative basic model: D050 or the F-Series pressure indicators.
- Basic: 8 - 30V DC (no real sensor supply).
- Long life Lithium battery.
- 4 – 20mAinput Loop-powered.
- 24V AC/DC + sensor supply.
- 115 – 230V AC + sensor supply.
- 8.2, 12 & 24V DC.
- (0)4 – 20mA.
- 0 – 10V DC.
- Function: Configurable alarm output for high, low or both combined pressure alarms.
- Type: One passive signal output, an active signal output or a robust, highly isolated (NO/NC) relay.
- None
