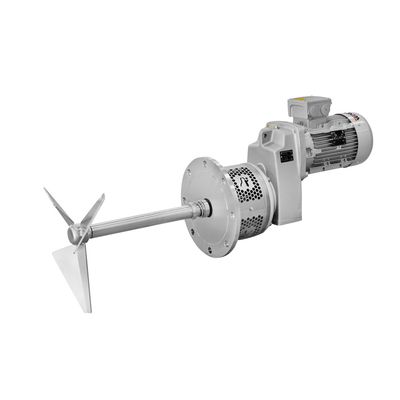

INOXPADINAMIX SMX Side Entry Agitator

SHARE
The bottom side entry agitators DINAMIX SMX are an economical and effective solution for process and storage tanks in the food, pharmaceutical and cosmetic industries. The most important application is the maintenance and homogenization in large volume tanks of low viscosity products such as wine, oil, milk, beer, alcohol, etc.
Most popular related searches

Side entry agitators DINAMIX SMX are used for the homogenization of liquids stored in large volume tanks.The rotation of the propeller creates a flow that impells the product to the bottom of the tank and then raises up to the surface  along the wall opposite to the agitator. The effect is promoted if the bottom is curved. The agitator is installed decentralized to enhance the circular flow. Thus a complete homogenization of the product is achieved.

Side-entry agitator.
Internal mechanical seal: EN12756 (DIN 24960 L1K).
Economical for use in large volume tanks.
Robust and sanitary design.
Easy maintenance.
The propeller fixed to the shaft by means of a threaded connection and a gasket.
Helical geared motors with food-grade oil.
Motor: 3 ph, 230/400 V, 50 Hz, IP55, 1500 rpm.
Marine propeller (Type10).

Parts in contact with the product 1.4404 (AISI 316L)
Other steel parts 1.4307 (AISI 304L)
Mechanical seal C/SiC
Mechanical seal gasket EPDM
Surface finish Ra ≤ 0,8 μm

SiC/SiC mechanical seal.

Gaskets: FPM.
Safety gland packing.
Shut-off: system to change the mechanical seal without disassembly the agitator or emptying the tank.
Motor with shroud.
Hygienic design.
ATEX certification.
