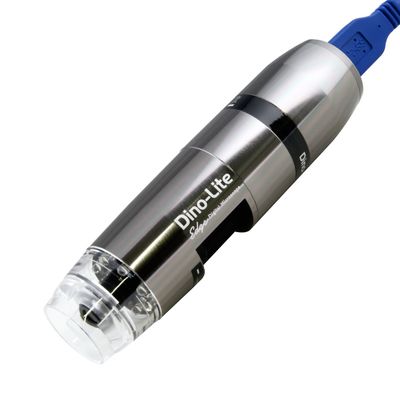

Dino-Lite Edge 3.0 - Model AM73915MT8 -USB Microscopes
At high magnifications, the thickness or roughness of targets may pose difficulties in focusing due to the small depth-of-field of microscopes. The Edge 3.0 AM73915MT8 microscope with 700x – 900x magnification provides EDOF to generate focus-stacked images. AM73915MT8 offers DPQ, EDOF, eFLC, AMR, EDR, a click-to-focus functionality for automatically changing focus to the point of interest, and smooth live imaging with a resolution of 5.0 MP at 15 fps or 1.3 MP at 45 fps.
5MP, USB 3 with eFLC, AMR, EDOF & High Mag
- 700x - 900x
- 2560 x 1920 pixels
- 45 fps
- WD: Short
- USB 3.0
- Mac OS, Windows
Measurement & Calibration: Yes
Flexible LED Control (FLC): Yes
Automatic Magnification Reading (AMR): Yes
Extended Depth of Field (EDOF): Yes (Windows PC required)
Enhanced Dynamic Range (EDR): Yes (Windows PC required)
Depth Acquisition (DPQ): Yes (Windows PC required)
Polarization: No
Magnification Range: 700x - 900x
LEDs: White (8)
Working Distance: Short
Body Material: Metal
Wireless Adapter: N/A
Microtouch Sensor: Yes
Magnification Lock: Yes
Connection Type: USB 3.0
Resolution: 2560 x 1920 pixels
Operating System: Mac OS, Windows
Frame Rate (max): 45 fps
Dimensions: 11.9cm (L) x 3.3cm (D)
Weight: 110g (3.88oz)
Cable Length: 182cm
Imaging Standards: UVC
Warranty Period: 2 years
Emission Wavelength (Filter):
Excitation Wavelength (LED):
Manufactured in: Taiwan
Regulatory Approval: CE, FCC
In the Box: Microscope, Carry Pouch, Software CD, Edge Calibration Target, Alternate end caps
