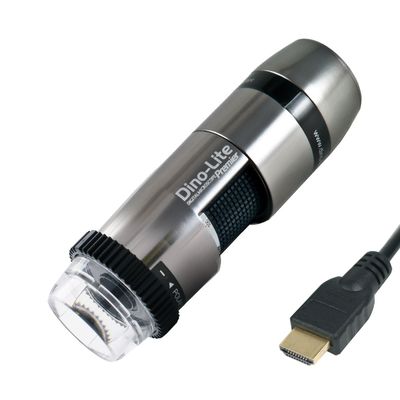

Dino-Lite Edge - Model AM5218MZTL -Video Microscopes
The Dino-Lite Edge Series AM5218MZTL is designed for connecting directly to HDTV or LCD monitors via HD Interface or DVI with HD 720p format with a polarizer and a longer working distance than standard models. This updated Edge Series model delivers higher image quality with a state-of-the-art lens design, providing matchless image quality with stunning sharpness, least aberration, and least vignetting throughout the whole magnification range which is apparent in the whole Dino-Lite Edge Series. The polarizer allows you to observe things in high resolution and see things you couldn’t with direct lighting with a full magnification range of 10x – 140x with longer working distance. The AM5218MZTL’s MicroTouch provides the convenience to freeze the live video to examine details by pressing and holding the MicroTouch sensor for 1 second. The LEDs can also be switched by holding the same MicroTouch sensor for two seconds or more.
TV HMDI with Polarizer, MicroTouch & Long WD
The Dino-Lite Edge AM5218MZTL is designed for connecting directly to HDTV or LCD monitors with HD 720p format with longer working distance and a polarizer.
- 10x - 140x
- 720p
- 60 fps
- WD: Long
- HDMI
- Direct to TV (No Software)
Magnification Range: 10x - 140x
Resolution: 720p
Frame Rate (max): 60 fps
Magnification Lock: Yes
Microtouch Sensor: Yes
LEDs: White (8)
Polarization: Yes
Working Distance Type: Long
In the Box: Microscope, AC Adapter, Alternate end caps
Connection Type: HDMI
Body Material: Metal
Dimensions: 10.5cm (L) x 3.2cm (D) (4.13" x 1.26")
Weight: 135g (4.76oz)
Cable Length:
Warranty Period: 2 years
Manufactured in: Taiwan
Regulatory Approval: CE, FCC
