QS Lasers - Model MPL1510 -Diode Pumped Sub-Nanosecond Passively Q-Switched Laser
FromQS Lasers UAB

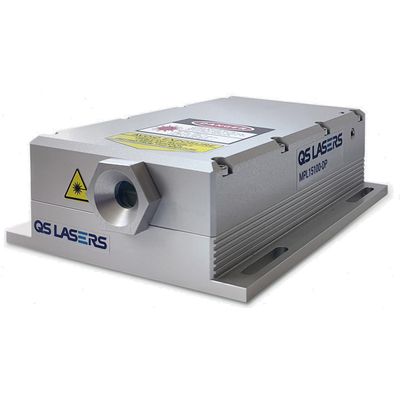

MPL1510 series DPSS passively Q-switched sub-nanosecond lasers deliver high peak powers > 4 MW at 100 Hz repetition rate. Short laser cavity is fixed on thermo-stabilized and controlled baseplate which gives extremely stable output parameters performance. Small footprint is welcome point for integration into OEM lasers. Sub-nanosecond pulse duration of < 500 ps, high pulse energy more than 2 mJ, variable repetition rate from 1 Hz to 100 Hz covers many applications like pollution monitoring, DNA analysis, supercontinuum generation and many others.
Most popular related searches
laser induced breakdown spectroscopy
medical surface disinfection
DNA analysis
pollution monitoring
gas mixture
fluorescence monitoring
surface disinfection
remote sensing
remote sensing monitoring
LIBS spectroscopy
Due to short pulse duration and high pulse energy laser delivers high peak power which is up to 2 MW. Optional conversion to green (532 nm) and ultraviolet (355 nm, 266 nm) is also available.
- More than 2 mJ pulse energy at 1064 nm
- Short pulse duration < 500 ps
- Variable up to 100 Hz repetition rate
- 532 nm, 355 nm, 266 nm harmonics
- Passively Q-Switched
- Average power 100 mW
- High peak power > 4 MW
- Guaranteed > 3 Gshot lifetime
- Other wavelengths (e.g. 1053 nm, 1342 nm, 671 nm, 447 nm, 914 nm) are available
- Medical
- Surface disinfection
- Laser induced breakdown spectroscopy (LIBS)
- Time resolved fluorescence measurements
- DNA analysis
- Pollution monitoring
- Remote sensing
- Supercontinuum generation
- Ignition of gas mixtures
