Dipole - Model S8658 -Universal Laird RFID Antenna

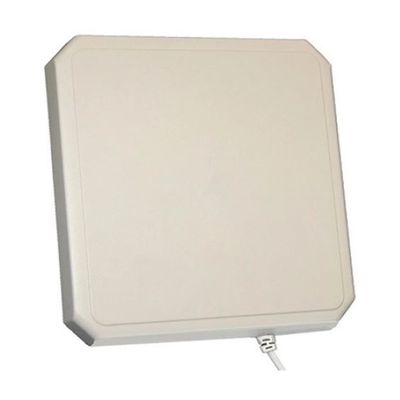

The universal RFID antenna Laird S8658 is a versatile circular polarization antenna that facilitates the transmission and reception of information, enabling communication between readers and tags. Its maximum range can reach 12 to 14 meters in an open field environment, depending on the type of tag being read and the surface it is placed on. A 1.8 meter coaxial cable is included. This antenna can be mounted on both the wall and a post using the corresponding mounting accessory. It is available with various types of connectors to suit your needs.
This device boasts a robust IP54 rating, signifying its resistance to water and its ability to operate in the rain, under dripping conditions, and when subjected to splashes. Additionally, it is sealed in such a way that it can withstand the presence of solid materials larger than 1 mm and prevent dust accumulation.
The antenna has a square shape with dimensions of 259 x 259 x 34 mm and weighs 1.13 kg.
Product Codes:
S8658PR, S8658PL, S8658WPR, and S8658WPL
- Technology: UHF
- Frequency: UHF ETSI 865-868 MHz
- Gain: 8.5 dBi
- Maximum Power: 3 Watts
- Polarization: Right-hand Circular, Left-hand Circular
- Beamwidth: 65°
- Connection Connector Type: N Male, SMA Female, TNC Reverse Female
- Protection degree: IP67, IP54
- Operating temperature: -20 °C to 50 °C / -4 °F to 122 °F
- Size:259mm x 259mm x34mm - 10.2in x 10.2inx1.34in
