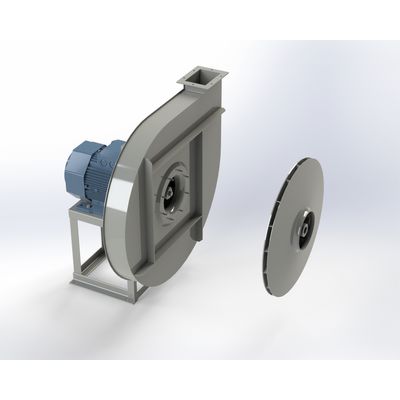

Euroventilatori - Model AP Series -Direct Driven Medium And High Pressure Centrifugal Fans
The fans of this series are particularly suitable for pneumatic conveyances, in cement factories, in the air feeding of the cupolas, in foundries and in oil burners, in mills, in “pasta” factories, in chemical, metallurgical and iron industries where small capacities with medium and high pressures are required.
Most popular related searches
- Use: suction of extremely dusty air.
- Temperature: 80°C without cooling fan and 150°C with cooling fan.
- Air flow : 2-9m3/min
- Inlet pressure : 194-248kg/m2
- Outlet pressure : 200-252kg/m2
- Engine installed : 71 B-2poles
- Installed power : 0.55KW
- Rotation speed : 2770round/min
- Limit speed : 2820round/min
- Fluid type : Clean, Dusty
- Inlet flange : ?145mm
- Outlet flange : 90x63mm
- Weight without engine : 23Kg
- GD2 : 0.3Kgm2
General notes:
The fan is revolvable.
Uses of Variable Speed Drives please pay attention to the possible overheating of the motor due to a lower rpm/Hz than recommended by the motor supplier.
