GSI - Direct Gear Drive Sweep

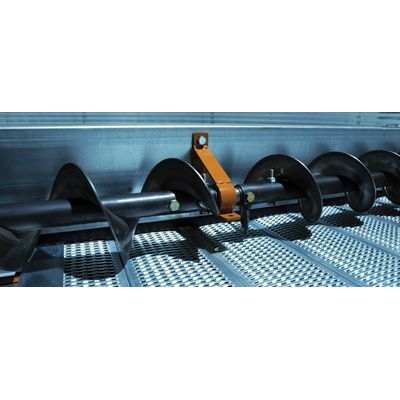

Re-engineered Direct Gear Drive power sweeps feature new center and intermediate well designs, heavy-duty gearboxes, single piece backshield assembly and redesigned end-wheel. With fewer moving parts, GSI Direct Gear Drive power sweeps are now more durable, reliable and easier to maintain than ever. Direct Gear Drive power sweeps are available in 8" (up to 48` dia. bins) and 10" (24` to 72`) models, and are permanently installed and ready to start up with the flip of a switch.
- Capacities: 1,500 - 5,000 BPH
- Power Heads: Vertical, Horizontal, 25°
- Unload Auger Diameter: 8" OR 10"
- Fits Bin Diameters: 15` - 72`
CENTER WELL
Redesigned center well uses fewer components, and unload tube bolts directly onto the center well for easier installation. Extended bolts on center well gate break up clusters. Steel roller bearings allow for smooth gate operation and durability.
CONTROLS
Rack-and-pinion controls are standard on all direct gear drive sweeps. Simplified sweep engagement with a band on control handle, with pin for locking position. Separate control pipes for center and intermediate wells along with a crank handle make opening and closing gates very easy.
WHEEL
Proven drive wheel design provides aggressive sweep action, advancing the sweep into the grain in even the most challenging conditions.
