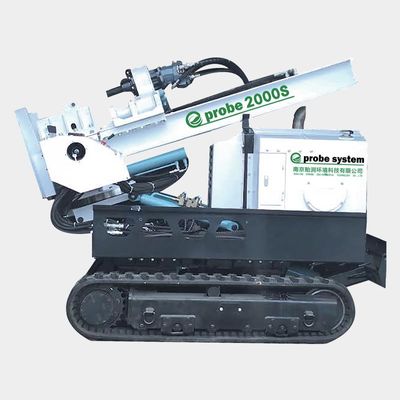

Eprobe - Model EP2000S -Direct Push Drill Rig
Remote data display and task management system, which can directly display the status of on-site equipment and manage site tasks in the laboratory or on mobile phones.
Most popular related searches
drilling rig
direct push drilling rig
soil vapor sampling
direct push drilling
soil sampling
vapor sampling
well construction
soil vapor
groundwater sampling
remote data management
- Model number EP2000S
- Weight 3.7t
- Parameter Name: Parameter Value
- Stoke: 1800mm
- Weight: 3.7t
- Width: 1600mm
- Height (in folded state): 2155mm
- Length (in folded state): 2832mm
- Walking speed: 0-6km/h
- Impact frequency: 43Hz
- Side swing (along the center line): ±3°
- Pendulum (along the midpoint): ±7.5°
- Foot stroke: 800mm
- Track ground length: 1560mm
- Stretch: 300mm
- Max. sampling depth: 30m+
- Customized High Frequency Impact Hammer Sandvik
- Integrated Operating Console
- High Torque Screw Power Head
- Double Liquid Injection System
- Power System Yanmar
- Hydraulic Pump Danfoss
- Integrated display and control
- Adopt rubber crawler chassis, remote control walking, and enhanced site adaptability;
- Lightweight design, enhanced passability (minimum passable dimensions width*height: 1600*2155mm);
- Stronger self-rescue ability when encountering soft terrain;
- Higher impact frequency, up to 43Hz;
- Remote data display and task management system, which can directly display the status of on-site equipment and manage site tasks in the laboratory or on mobile phones;
- The rig integrates an in-situ injection system for repair agents, with an injection pressure up to 16MPa.
- Direct pressure soil sampling
- Direct pressure soil vapor sampling
- In-situ reagent injection
- Direct pressure groundwater sampling
- Hollow auger well construction
