Direct Radiator Heating System
FromKozanlar AS

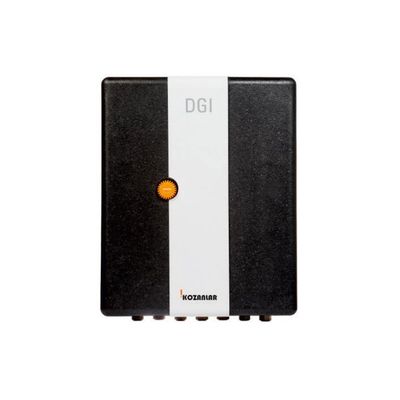

Heat interface units , is complete solution for apartments for radiator systems. Balancing valves for complete unit and radiator side is used to control the pressure difference across and in the system. Stainless steel heat exchanger and thermostatic controlling valve to have a stable temperature domestic hot water. Up to 23 lt/min. All the consumption of heating and domestic hot water preparation can be measured by one heat meter and cold water meter. All the piping is stainless steel.
Most popular related searches
cold water meter
balancing valve
stainless steel pipe
water metering
control valve
water meter
domestic water
thermostatic valve
ball valve
water supply
- Stainless Steel pipe 18 x 1mm (AISI 304)
- Galvanised back plate
- Brazed heat exchanger for hot water
- Special immersion thermostatic control valve for hot water
- 9mm Rubber Isolation
- EPP Cover with Isolation (Optional)
- Differential pressure balancing valve inlet 20-65 kpa
- Differential pressure balancing valve heating 5-25 kpa
- Heat meter spare part (Demand on request)
- Cold water meter spare part (Demand on request)
- Brass
- Connections
- Dirt catchers
- Mounting plate with ball valves (Optional)
- On-wall cabinets (Optional)
- In-wall cabinets (Optional)
- Nominal Size: DN20
- Max. Operating Pressure: PN16
- Max. Operating Temperature: (Heating Water Supply) 90 °C
- Maximum Pressure Loss in Primary Side: 35 kPa
- Maximum Pressure Loss in Secondary Side: 30 kPa
- Heat Exchanger Capacity: 33 Kw - 50 Kw - 65 Kw
- Domestic Hot Water Flowrates: 12 lt/min - 18 lt/min - 23 lt/min
