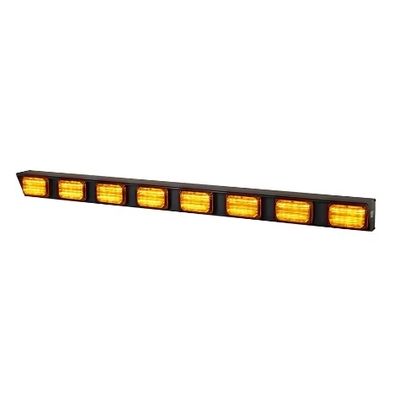

Federal Signal QuadraFlare SignalMaster - Directional Warning Light
The QuadraFlare® SignalMaster™ is a directional warning system that provides left, right, and center-out directional signals to direct rear-facing traffic. When a directional signal is selected, the lamps illuminate individually in a sequential sweeping motion until all lamps are illuminated. In addition, an alternating flash pattern produces a warning signal for use when a directional signal may not be appropriate. QuadraFlare LED lights are designed with Solaris® LED reflector technology for superior off-axis lighting.
- Directional warning stick light
- Available in 47" and 72" lengths
- Single-color models
- 6- or 8-head models
- Left, right, and center-out directional signals
- Controller features multiple user-selected warning patterns: (16) Full-featured controller model 331105-SB or (10) Basic controller model 330104-SB
- 12 Vdc
- Controller required, purchased separately
Easy Serviceability
The QuadraFlare SignalMaster was designed with ease of serviceability in mind. If you need to replace a light head, remove the screws on each end of the light and disconnect the wire harness connector from the assembly. Reconnect the wire harness to the cable assembly and secure the two screws using the new light head.
Different Applications Call for Different Controllers
The full-featured SignalMaster controllers, sold separately, operate with a low-power mode to reduce amp draw for nighttime operation and fast mode that increases the “build” speed of the warning pattern. The standard and full-featured controllers provide left, right, center-out and flashing directional warning patterns.
- Light Source: LED
- Warranty: Five-year
