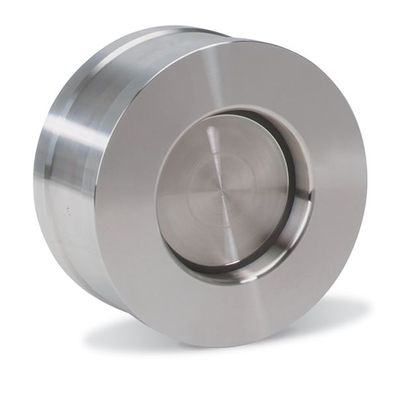

PrimeDisc Xtreme - Model X | DSF -Disc Check Valve

High Pressure Approved
The specially designed valve body is suitable for high pressure applications

Standardised Connection Options
The versatile design allows installation with all common international flanges and face-to-face lengths

Wide Selection of Materials
Operating temperatures up to 500°C and transmission of corrosive media are possible due to the range of special materials available

Nominal Diameter
DN 15–100 | ½”–4”

Flange Connection
EN 1092-1 PN10–16 | ASME Class 150 | JIS 10K

Max Working Pressure
160 bar

Operating Temperature
-200°C to 500°C

Face-to-Face Length
EN 558, Row 52

Materials
Carbon Steel | Stainless Steel | Duplex | Uranus | Titanium

Seal
Metallic | EPDM | NBR | FKM | PTFE

Conformity
PED 2014/68/EU | ATEX 2014/34/EU

Pressure Test: EN12266-1
Leakage Rate A for soft sealings | Leakage Rate D for metallic & PTFE sealings
