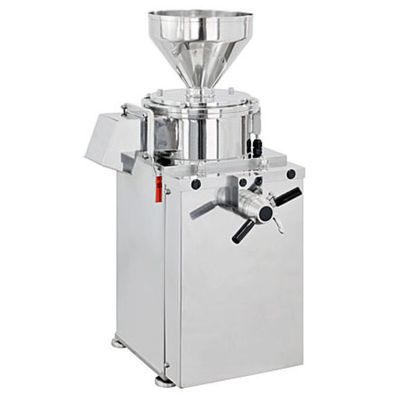

FUCHS - Model GRANOMAT JP - Disc Mill for Ultrafine Grinding

SHARE

The GRANOMAT JP Disc Mill is engineered for ultrafine grinding of a wide range of materials, proving its versatility across multiple industries including food, cosmetics, chemical, and pharmaceutical sectors. The grinding mechanism involves centrifugal forces that propel the product through grinding discs. The stationary discs are affixed to the lid (stator), while the fast-rotating discs are housed in the grinding chamber. Users can adjust the granularity by modifying the disc distance using a side-mounted handwheel. Suitable for both wet and low-dust dry grinding, the mill can be adapted by utilizing different types of discs to produce a variety of products according to specific requirements. It operates in a disc diameter range DN 150-360, providing flexibility and precision in material processing. Its strategic applications lie in the ultrafine pulverization of diverse products.

Most popular related searches
disk mill
noise and vibration
dry grinding
centrifuge
grinding mill
pulverizer
cooling system

How it works

Centrifugal forces pull the product from the inside to the outside through the grinding discs. The static grinding discs are attached to the lid (stator), while the rapidly rotating discs are mounted at the bottom of the grinding housing.
The distance between the grinding discs is adjusted to the desired granulometry using the handwheel mounted on the side.

Applications

The GRANOMAT JP disc mill is used for ultrafine grinding of many products. It is also referred to as a micronizer and can be used for both wet and low-flour dry grinding. Depending on the disc type used, a wide variety of products can be produced.

Advantages

  • Very precise grinding process
  • Adjusting the grinding unit during operation
  • Large variety of grinding discs
  • Low-flour coarse grinding
  • Low noise and vibration
  • Very easy to clean
  • Easy installation
  • Optionally available with cooling or heating system

Areas of application

  • food industry
  • Cosmetics
  • Chemical industry
  • Pharmaceutical industry
