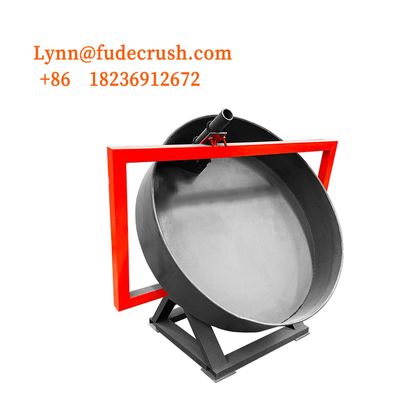

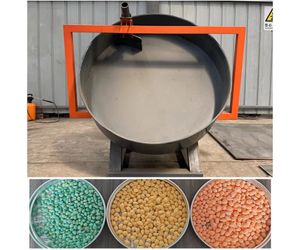

organic fertilizer - Model small-scale -Disc Pelletizer

The working principle of the disc granulator is mainly based on the action of rotating discs and centrifugal force. The raw material generates centrifugal force under the action of the disc, and is also subjected to gravity, forming a certain thickness of material layer. During this process, the raw materials are compressed and squeezed, gradually forming particles. At the same time, the particles continuously roll, rub, and collide within the disc, gradually smoothing the surface of the particles and further enhancing their strength. Finally, the formed particles slide down from the edge of the disc to the discharge port and are discharged through the discharge device.

Product features:
1. Novel and reasonable structure: The disc granulator adopts an integral circular arc structure, which reduces weight and height, and has flexible and convenient process layout, making it suitable for the renovation of old factories.
2. Easy adjustment: The tilt angle of the market can be adjusted, using angle washers for flexible and convenient adjustment.
3. Low energy consumption: adopting a unique non powered combination scraper integrated design, reducing auxiliary power consumption.
4. Good ball forming effect: With a brand new dredging design, the non powered combination scraper cleans the edges and bottom, and the corner cleaning scraper clears the corners. Combined with the unique processing technology of the disc body, the dredging and ball forming effect is good, and there will be no large mud lumps.
5. Wide applicability: The disc granulator is widely used for processing spherical particles of bio organic fertilizers, such as coal powder, cement, clinker, fertilizers and other materials. At the same time, the raw materials have a wide adaptability and can be used for granulation of various raw materials such as compound fertilizers, pharmaceuticals, chemicals, feed, coal, metallurgy, etc.

Structural composition:

A disc granulator usually consists of a disc, scraper, screen, transmission device, feeding device, discharging device, and control system. Among them, the disc is the core component, and the tilt angle and speed can be adjusted as needed. Scrapers are used to scrape particles from discs, while sieves are used for grading and screening particles. The transmission device is responsible for driving the rotation of the disc, while the feeding device and discharging device are respectively responsible for the input of raw materials and the output of particles.

Zhengzhou Fude Machinery Equipment Co., Ltd. is a professional enterprise engaged in the research and development, production, and sales of organic fertilizer equipment. Our production equipment includes: roller granulators, disc granulators, vertical crushers, trough turners, track turners, disc turners, organic fertilizer production lines, etc. We are committed to providing customers with efficient, stable, and reliable pre-sales and after-sales services.
