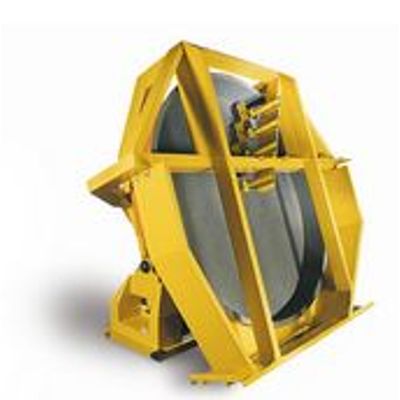

Mars Mineral - Model P -Disc Pelletizer
The Mars Mineral Disc Pelletizer is an adjustable pan device utilized in micro-pelletizing, pelletizing and conditioning applications in which a shallow pan and a smaller retained burden are desired. It can be used to pelletize materials such as taconites, copper, nickel, lead and zinc concentrates. Other applications include pelletizing of reclaimed sludge, moist filter cakes, coal, flue dusts, limestone, fertilizers and ores.
The Mars Mineral Disc Pelletizer consists of a pan, rocker deck, plow support with plows, spray system and ust cover which are supported on a heavy structural frame and base.
The pan is driven by heavy-duty gear reducer that is mounted directly on the output shaft.
Changes in pan rotational speed can be made through an optional control panel with a VFD. The pan angle is adjustable within a range of 20 degrees to suit various pelletizing
The Mars Mineral Disc Pelletizer is equipped with a binder spray system which includes piping, tubing, nozzles, pressure gauges, valves, pressure regulator and strainer. For extremely dusty or toxic applications, Mars Mineral will also provide a discharge chute and a dust cover as optional items.
This unit is a front feeding device. Various feeders are used in conjunction with it to accommodate a range of materials and accuracies. Selection may be made from volumetric screw feeders, belt or table feeders and gravimetric weigh belt feeders.
