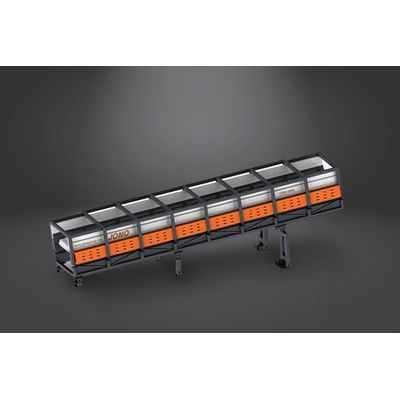

JONO - Disc Screen
JONO`s unique patented disc screen, which has been used for more than five years in more than 100 cases, has proved to be very suitable for the screening of Asian`s chaotic domestic waste. Compared with the traditional trommel screen, the flexible screen hole of disk screen has the function of self-cleaning. The unique transmission shaft greatly reduces the possibility of winding caused by long strip garbage .
As one of the most important sorting machines, disc screen separates material into big-sized material and small-sized material. By changing the screening size, you can always separate out what you need.Typicallyjt is applied in treating MSWjn process of which organics or RDF can be well separated out.
The material is dispersed by rotating disc separator. With the movement of material on the disc, small fractions fall through the screen hole formed by the adjacent main shaft and the screen plate, and the materials larger than the screen holes come out of the outlet.
- JONO`s patented disc screens, were used in over 100 projects for five years, has proved to be very suitable for the screening of Asian`s chaotic domestic waste.
Driven by the electrical motor, main shafts running in one direction in the screening chamber. When material goes into the disc screen, the material is firstly scattered by the rotating disc plates. Then along with the movement of material on the disc plates, the small-sized material drops down through the screening hole formed by the neighbor main shafts and the neighbor screen plates.Material that is bigger than the screen hole will pass disc screen. With the knowledge that different material has different size range.the material can be separated by this size-controlled screening.

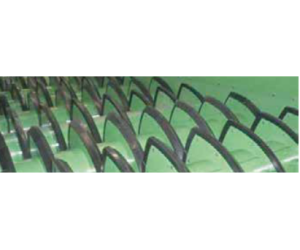

- Quincunx shaped screen plates are well arranged, which not only benefits the conveying of the material, but also avoid the jamming caused by the material.
- The side plate of the machine is made of high-quality O wear-resistant steel plate, which greatly improves the service life of the equipment.
- Both ends of the screen shaft adopt wear-resistant lining plate disc structure, which completely solves the problems of leakage and jamming on both sides of the machine body and ensures the normal operation of the equipment.
- The surface of the screen plate is finely processed to prevent the material from sticking on it.
- The screen unit is placed at an up angle of 0 to 4 O degrees, so that the material is stored for a longer period screened sufficiently.
- The disc screen is started in sequence, that is, the first screen shaft at the discharging chute starts O first, and then other ones sequentially start, so that the screen can be started with load when there is material on the screen unit.
- The disc screen adopts electrical overload protection. When the equipment is overloaded, the current becomes larger. When the critical value exceeds the critical value, an alarm signal will be issued and the machine will be stopped, thereby protecting the equipment from damage.
- Easy to replace the wear and spare parts.
