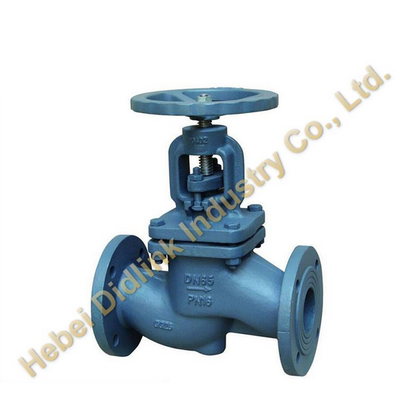

DID Link - Disc Type Brass Cast Iron Globe Valve
Name: Cast Iron Globe Valve disc type brass, manual globe valve. Design confirms: DIN3356. Flanges drilled confirms: BS EN1092. Tightness check: EN12266. Face-to-face conform: BS EN558-1 series 1.
Most popular related searches
- Normal pressure: 1.6MPa
- Shell test pressure: 2.4Mpa
- Seal test prressure: 176Mpa
- Suitable medium: water and neutral liquid
- Working temperature: 0 to 200 centigrade.
- Body/Bonnet/Disc: Cast iron GG25
- DISC: Cast iron with Brass or stainless steel seal ring
- Stem: Zinc Plated Steel/ Stainless Steel/ 2Cr13 stainless steel etc.
- GLAND FLANGE: Cast iron GG25
