Baohao - Discharge Air Bag for Drilling Mud Pump

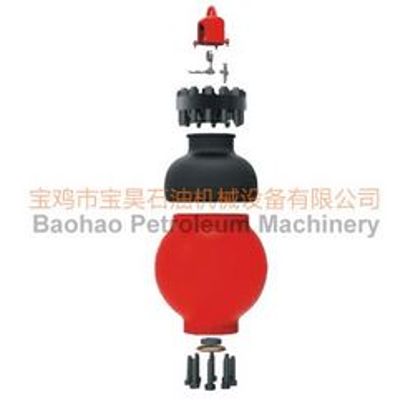

Air bag, also called discharge air bag,it is installed in the discharge line of a fluid end, and played a role to ensure good steady pressure and pressure compensation . Its working pressure is 80% of mud pump working pressure. F500/F800 mud use KB45 air bag, F1000/F1300/F1600 use KB75 air bag. Notably, when removable air bag, you must relief first .
Most popular related searches
drilling mud pump
mud pump
drilling mud
air inflatable bag
pulsation dampener
air drill
inflatable bag
air valve
workplace air
air pump
- Discharge Air Bag For Drilling Mud Pump
- F500/F800 mud pump use KB45 air bag
- F1000/F1300/F1600 use KB75 air bag
- Standard:API7K
- Brand:OEM Hydrill
The maintenance of the air bag
- Air bag inflator pressure is 30% of designed pump pressure, the general pressure is 4~6MPa , the best pressure is 4.5MPa
- Mud pump at the normal working hours, the air bag cutoff valve is closed to protect gauges
