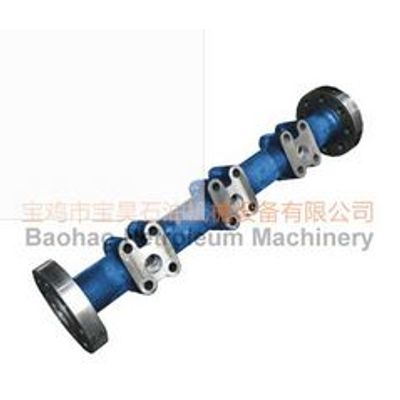

Baohao - Model F -Discharge Manifold

Mud pump pressure medium discharge line is output. 35CrMo high quality casting blank processing. Three holes respectively, and the middle of it is connected to three hydraulic cylinders, one end and the end portion connected to the filter assembly, the output end and the other end through the four-way connection. Discharge piping materials: American Cast Iron A487-9D, resistant to corrosion and a wide temperature range and high strength characteristics. Modulation processing: HB195-235. Finished hydrostatic test, the test pressure is 52MPa, no leakage and other defects.
