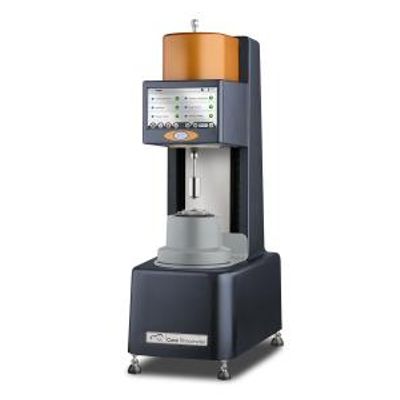

TA Instruments - Discovery Core Rheometer
The Core Rheometer is the first system to combine wide-ranging measurements of viscosity and viscoelasticity with streamlined, walk-up usability. The new RheoGuide user interface enables complete operation directly from the touch screen, with direction, illustration and validation at every step.
While viscometers report only a single viscosity value within a limited range, the Core Rheometer captures the complete viscosity profile, representing material behavior across all relevant conditions. Complex fluids like suspensions, emulsions, gels, pastes and slurries are non-Newtonian. Their viscosity changes with the applied shear rate and time; it is not a single value. Characterizing the full range of viscosity is critical to understand flow behavior under real-world conditions.
- Precision and accuracy
- Range of measurement
- Controlled shear rate
- Replicate process conditions
- Small sample volume
- Rapid temperature control
- Flow
- Oscillation
- Transient
- Walk up usability: Perform routine tests directly from the instrument touchscreen, from start to finish, without need to interact with the PC.
- Guided operation: Pre-defined Methods and on-screen instructions and illustrations direct operator actions in a step-by-step workflow enabling every user to perform successful rheology measurements with minimal training.
- Validation throughout: Common sources of error are eliminated- the correct geometry is installed and calibrated, the sample information is updated, and every step is complete. When operators never miss a step, data is more accurate.
- Ensure operator safety: On-screen messages alert if the method exceeds safe-touch temperature with reminders for proper PPE. RheoGuide prompts operator interactions when needed and disables interaction when the head is in motion.
- Rapid results: Automated analysis results are displayed on the touchscreen immediately upon test completion, along with pass or fail indication. Eliminating the need for routine manual data processing is ideal for fast-paced Quality Assurance/Quality Control testing labs.
- Synchronize methods: Discovery Hybrid Rheometer methods directly transfer to Core Rheometers to replicate R&D’s measurements in QC testing. Methods shared across instruments and sites help ensure every operator performs the same measurement.
- Powered by TRIOS™ software: Customize RheoGuide methods and access all raw data files for additional analysis through TRIOS, the popular software platform from TA Instruments.
- Measurement Specifications
- Minimum Torque : 0.5 µN.m
- Maximum Torque : 125 mN.m
- Torque Resolution : 10 nN.m
- Displacement Resolution : 100 nrad
- Maximum Rotational Velocity : 300 rad/s
- Minimum Angular Frequency : 10-4 rad/s
- Maximum Angular Frequency : 628 rad/s
- Motor Inertia : < 25 μN.m.s2
- Gap Positioning Speed : 10 mm/s
- Dimensions (width x height x depth) : 30 cm x 77 cm x 42 cm
- 11.8 in x 30.3 in x 16.3 in
- Weight : 34.5 kg (76 lb)
