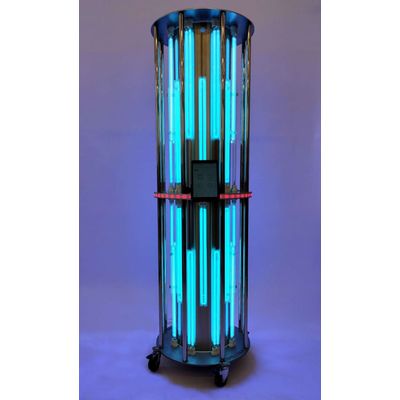

Grizzly - Model Spectra Infinity -Disinfection Hybrid Systems
The most inovative disinfection system on the market designed for hospitals, the military and other professional applications. The uniqueness of the device lies in the 3 most effective ways of chemical-free disinfection of surfaces, entire spaces and air. Thanks to the powerful core, it is possible to activate the disinfection process by using ozone.
- The powerful core can generate up to 80,000 mg of ozone per hour and, with the help of a built-in fan with an output of 1,320 m3 / h, ensures the penetration of ozone into all parts of the area, entire room, all surfaces, textiles, underside of the furniture etc…
- This combination of germicidal radiation and ozone is the only real disinfection method that can be described as shadowless disinfection.
- The device is designed for very fast and efficient disinfection of the entire space and this is ensured by UVC lamps with a high output of 1,760 W.
- These UVC lamps are located around the entire perimeter of the device, which ensures disinfection in all directions at a 360 ° angle.
- SPECTRA infinity is equipped with safety sensors that deactivate the external UVC tubes in case of motion detection.
- During the presence of people, the device can be switched to the closed germicidal radiator mode.
- SPECTRA infinity provides health protection in the workplace even during the presence of people, thanks to which the device can be used during the entire work operation.
- Automatic time calculation for disinfection (with LiDAR)
- The whole device is easy to transfer from space to space thanks to a mobile chassis with wheels.
- The entire construction of the device is made of high quality stainless steel AISI 304
- SPECTRA infinity is controlled by the supplied tablet. The application is user friendly and offers full control during the disinfection process, as well as history of the users and processes in the past. The application will alert the user in case of any malifunction of the device.
Spectra Infinity is high-performance mobile disinfection system designed for professional use.
- Technology – open germicidal radiator with a power of 1,760 W (360 ° radiation)
- Technology – closed germicidal radiator with a capacity of 440W with a fan with a capacity of 1,320 m3 / h
- Ozone generator with an output of 80,000 mg per hour with a fan with an output of 1,320 m3 / h
The device can disinfect the desired area with germicidal radiation in a very short time. If there are many obstacles in the room that would create shadows, it is possible to activate an additional mode of ozone disinfection and thus complete disinfection of the entire room, all surfaces, textiles, underside of the furniture etc. During the presence of people, the device can be switched to the air flow germicidal mode and thus ensure a safe environment for all persons in the room. The device is equipped with safety sensors that deactivate the external UVC tubes in case of motion detection.
Control of the device is ensured by the supplied tablet. The application offers multiple functions, time settings and controle mode. Several devices can also be controlled centrally from one place.
The whole device is made of high quality stainless steel AISI 304.
The appliance can be easily moved thanks to the mobile wheels, which can be locked to block movement.
PARAMETERS:
Open UVC system:
- Germicidal power of an open UVC emitter: 1760W
- Type of fluorescent lamps used: Philips PL-L 55 2G11 or OSRAM HNS 55 2G11
- Number of lamps for open UVC emitter: 32
- High quality ballasts for lamp life up to 20,000 hours
Air flow UVC system:
- Germicidal power of internal UVC emitter: 440W
- Type of fluorescent lamps used: Philips PL-L 55 2G11 or OSRAM HNS 55 2G11
- Number of pieces for open UVC emitter: 8
- High quality ballasts for lamp life up to 20,000 hours
- Fan: SPAL with a capacity of 1,320 m3 / h (58dB) with speed regulation
- OZONE disinfection system (99.9% elimination of shadows compared to UVC)
- Ozone generator power: 80.000mg / h (80g / h)
- Number of ceramic ozone plates: 16
- Lifespan: approx. 8,000 hours
- Fan: SPAL with a capacity of 1,320 m3 / h (58dB)
- Supply voltage: 230V / 50Hz
- IP: 20
- Type of control: Using the supplied tablet
- Security: 4x PIR sensor for 360 ° motion sensing
- (in case of motion detection, deactivates UVC tubes )
- Maximum combined power of germicidal radiation: 2200W
- Radiation wavelength: 253.7 nM
- Beam angle: 360 °
- Weight: 76 kg
- Device height 185cm, base diameter 50cm
- Device type: Mobile with braked wheels
- Acoustic and optical signaling of ongoing disinfection
- Color signaling of active disinfection mode
- Safety siren noise: 58dB / siren deactivation option.
- Built-in digital ozone senzor
- Suitable for spaces up to 200 square meters
- Material: Stainless steel AISI 304
- PARAMETERS:
- Open UVC system:
- Germicidal power of an open UVC emitter: 1760W
- Type of fluorescent lamps used: Philips PL-L 55 2G11 or OSRAM HNS 55 2G11
- Number of lamps for open UVC emitter: 32
- High quality ballasts for lamp life up to 20,000 hours
- Air flow UVC system:
- Germicidal power of internal UVC emitter: 440W
- Type of fluorescent lamps used: Philips PL-L 55 2G11 or OSRAM HNS 55 2G11
- Number of pieces for open UVC emitter: 8
- High quality ballasts for lamp life up to 20,000 hours
- Fan: SPAL with a capacity of 1,320 m3 / h (58dB)
- OZONE disinfection system (99.9% elimination of shadows compared to UVC)
- Ozone generator power: 80.000mg / h (80g / h)
- Number of ceramic ozone plates: 16
- Lifespan: approx. 8,000 hours
- Fan: SPAL with a capacity of 1,320 m3 / h (58dB)
- Supply voltage: 230V / 50Hz
- IP: 20
- Type of control: Using the supplied tablet
- Security: 4x PIR sensor for 360 ° motion sensing
- (in case of motion detection, deactivates UVC tubes for 2 minutes or more according to the client’s wishes)
- Maximum combined power of germicidal radiation: 2200W
- Radiation wavelength: 253.7 nM
- Beam angle: 360 °
- Weight: 76 kg
- Device height 185cm, base diameter 50cm
- Device type: Mobile with braked wheels
- Acoustic and optical signaling of ongoing disinfection
- Color signaling of active disinfection mode
- Safety siren noise: 98dB / siren deactivation option.
- Built-in digital meter for operating hours of UVC tubes
- Suitable for spaces up to 200 square meters
- Material: Stainless steel AISI 304
