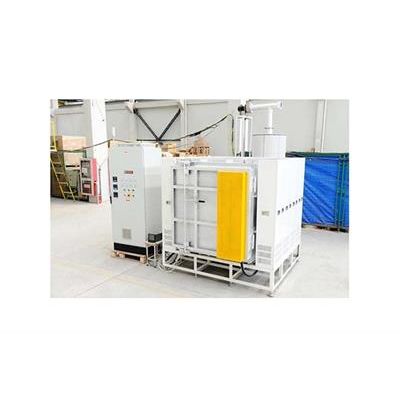

Dispensing and Degreasing Furnace
Dispensing and degreasing furnace is mainly used for the processing of aluminum oxide, zirconia and other advanced ceramics.
Most popular related searches
digital temperature controller
stainless steel plate magnet
furnace
ceramic fiber
degreaser
temperature monitoring
temperature meter
thermocouple
material testing
1. Maximum temperature: 600℃
2. Common temperature: 550℃.
3. Furnace effective volume: 600×600×600mm (L×W×H). (the furnace size can be customized according to customer requirements)
4. Temperature control points: 1 point temperature control, 4 points temperature measurement, 1 point protection (armored k-indexing thermocouple).
5. Temperature control accuracy: ±1 ℃.
6. Temperature control meter: multi-stage intelligent program control instrument imported from Japan. Parameters of P, I and D are self-tuning.
7. Heating element: far-infrared heating tube.
8. Insulation material: 1260 type alumina ceramic fiber cotton.
9. Fan material: SUS310S heat resistant stainless steel (dynamic and static balance test).
10. Material plate specification: 2 layers, SUS310S stainless steel plate integral stamping forming (integral reinforced type). 11. Recording system: with 6-channel paperless recorder.
12. Maximum heating power: about 13Kw.
13. Equipment handling: both sides of the furnace frame are reserved for the height of manual hydraulic push carts.
14. Reference dimensions: about 1600×1000×1350mm (L×W×H).
