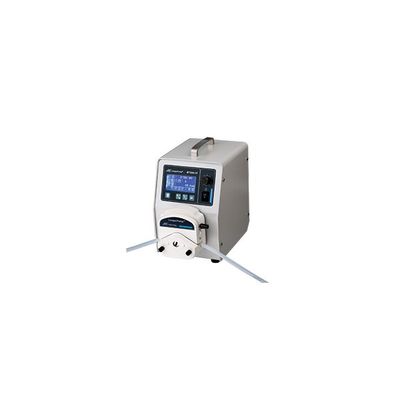

Longer - Model BT300-1F -Dispensing Peristaltic Pump
Dispensing peristaltic pump BT300-1F has LCD, which could display the parameters and running state. The pump could run continuously at desired flow rate and speed, and also could complete the dispensing function at desired dispensing volume, dispensing time and batch cycles. The flow rate calibration and dispensing calibration ensure the high accuracy and precision. The pump offers flow rate from 0.07 mL/min to 1140mL/min. And the dispensing volume is from 0. 1mL to 99.9L. The pump could be controlled through control panel, external control interface and RS485 communication interface. CE certified product based on request.
Most popular related searches
peristaltic pump
dispensing pump
analytical instrument industry
laboratory analytical instrument
peristaltic dispenser
laboratory analysis
analytical instrument
laboratory instrument industry
analytical laboratory instrument
fluid dispenser

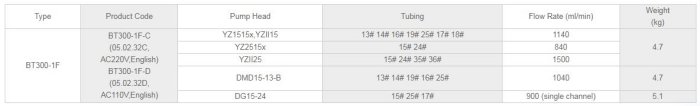

- Flow rates:0.07ml/min-1140ml/min
- Max. Number of Channels:2
- Suitable for laboratory, analytical instrument, industry.
- Applicable pump heads: YZ1515X, YZII15, YZ2515X, YZII25Set pause time to realize dispensing and filling automatically
- Display can switch between flow rates and rpmCalibrate setting flow rates to acquire more accurate flow rates
- RS485 communication interface available. Offering communication protocol to customer and customizing software according to customer`s requirements.
- Power-off memory: Return to previous state when power on
- Prime: For fast filling and emptying at full speed
- Dispensing function: dispense the fluid at desired volume, dispensing time and batch cycles.
- Calibration function: The flow rates and the dispensing volume can be calibrated to increase the accuracy.
- Speed: 1 to 300 rpm, CW/CCW
- Speed precision: 1 rpm
- Control mode: Control panel, external signal control and communication control are available
- Display: LCD for running state
- Dispensing volume: 0.1ml to 99.9L
- Copy number: 1 to 999, "0" means unlimited cycle
- Pause time: 1 to 999 s(0.1s resolution within the time of 0.1s-100s,1s resolution within the time of 100s-999s)
- Back suction angle: 0-360°, resolution is 18°
- External control: Start/stop, direction and speed control (4-20mA, 0-5V, 0-10V, external control module optional)
- Speed output: 0-5V corresponding to 1-300 rpm
- Start/stop output: OC gate signal
- Direction output: OC gate signal
- Communication interface: RS485
- Back suction angle: 0 to 360°, 18° increments
- Power supply : AC 220 V ± 10% 50/60 Hz (standard) or AC110 V ± 10% 50/60 Hz (optional)
- Power consumption: < 50 W
- Operating condition: Temperature 0 to 40 °C ; Relative humidity < 80%
- Dimensions (L × W × H): 202 × 160 × 239 (mm)
- Drive weight: 4.3 kg
- IP rating: IP 31
