Zygo - Model ZMI Series -Displacement Measuring Electronics Interferometers

SHARE

ZMI measurement electronics calculate displacement using optical signals from the interferometers driven by a ZMI laser source. The ZMI 501A provides two axes of measurement in a convenient stand-alone enclosure.

Most popular related searches
interferometer measurement
interferometer
position sensor
metrology
displacement sensor
optical interferometer

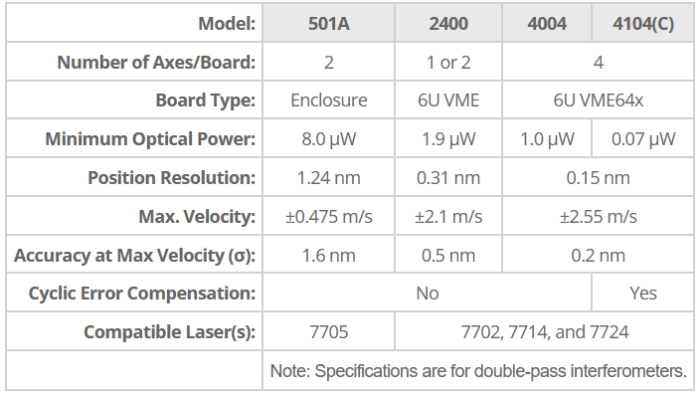

The ZMI™ 501A provides two axes of measurement in a convenient stand-alone enclosure.

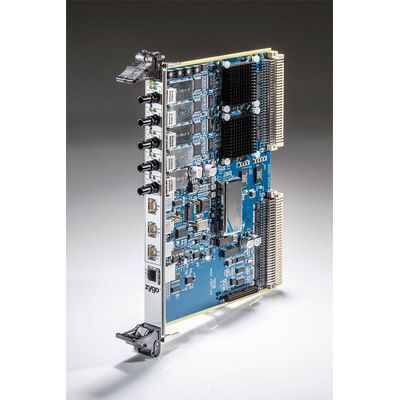

The ZMI™ 2400, 4000, and 4100 series boards provide sub-nanometer resolution to service the most challenging position metrology applications. These boards can be modularly added in a VME chassis to provide scalability up to 64 axes of measurements.

For ultimate measurement precision, our patented Cyclic Error Correction option automatically and seamlessly eliminates  common non-linear errors intrinsic in DMI systems.
