Senseair - Display Transmitter

SHARE

This versatile 3-in-1 transmitter combines all the necessary elements for effective climate control in commercial office buildings, hospitals, schools, and other facilities. It measures CO2 concentration, temperature, and humidity in the ambient air accurately without the need for additional compensation - true read.

Most popular related searches
demand controlled ventilation
ambient air
digital temperature controller
controlled ventilation
air conditioning
humidity control
CO2 monitoring
CO2 demand controlled ventilation
CO2 monitor controller
ventilation control
  • Maintenance-free
  • CO2, temperature & RH
  • Colour touch display
  • Customizable GUI
  • Five-year warranty

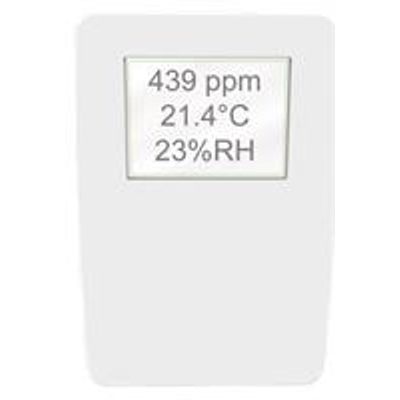

tSENSE is an advanced and versatile 3-in-1 transmitter designed for installation in the air-conditioned zone. It measures CO2 concentration, temperature, and humidity in the ambient air accurately without the need for additional compensation ─ true read. The data transmits to a BMS system or a stand-alone controller using industry standard output signals and communication protocols. tSENSE combines all the necessary elements for effective climate control in commercial office buildings, hospitals, hotels, schools, and other facilities.

Using CO2 monitoring for demand control ventilation (DCV) allows a healthy, comfortable, and cost-effective environment for the occupants. It is flexible in design with temperature control and a combination of humidity control optional. Though suitable for use in many different energy-efficient ventilation strategies, SenseAir® welcomes any discussions for specific needs.

Complies with ASHRAE standard 189.1 (±50ppm @ 1,000ppm of measured CO2 value).

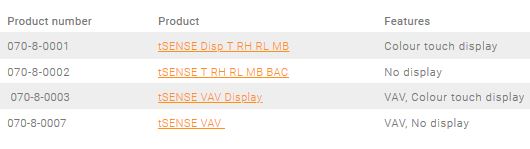

  • Product Number 070-8-0001
  • Measured gas Carbon dioxide  CO2
  • Measurement range CO2 0 to 2,000 ppm
  • OUT1 CO2 0 - 10VDC, 0 - 2,000 ppm
  • OUT2 Temperature 0 - 10VDC, 0 - 50°C
  • OUT3 Relative Humidity 0 - 10VDC, 0 - 100%RH
  • Accuracy (CO2) ±30ppm ±3% of reading
  • Dimensions 125mm x 85mm x 22mm
  • Life expectancy >15 years
  • Operation temperature range 0 - 50°C
  • Power supply 12VDC, 24VAC/DC
  • Communication Modbus (MB) or BACnet (BAC) protocol over RS485
