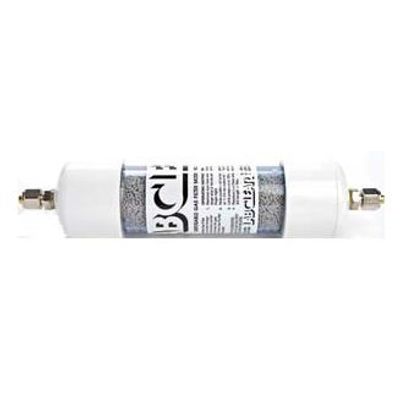

LabClear - Model DGF-250 -Disposable Filters
FromLabClear, Inc.
Body material: Clear PVC. Caps: White PVC.
Most popular related searches
molecular sieve
compression fitting
filter dryer
gas filter
PVC fitting
container desiccant
desiccant dryer
fit test
fit testing
- Fittings: 1/4" Nickel-plated brass, secured with epoxy
- Fill material: 13X Molecular Sieve and Indicating Drierite®
- Volume: 200 ml
- Capacity: 29 grams of water from an air stream at 10% RH at 20 C and 1 atm pressure
- Approximate length: 7 1/2"
- Approximate diameter: 2"
- Maximum operating pressure: 125 psi
- Maximum operating temperature: 100° C
- Nominal flow rate: 5 liters per minute
- Pressure drop: (5 mm water)/(liter per minute air flow)
- MSDS Forms: 13X Beads & Indicating Drierite®
Both these models contain indicating Drierite® desiccant and #13X molecular sieve. The body of the filter is constructed of clear PVC for easy viewing of the Drierite® color indication, which changes color from blue to pink with the absorption of moisture and comes equipped with 1/8" or 1/4" brass male tube compression fittings. Each unit is tested at 125 psi, and can withstand temperatures up to 100°C.
The LabClear™ Disposable Gas Filter is offered only in the 200 cc capacity with the inline configuration, and is approximately 7" long by 2" in diameter. Both these units are designed for a nominal flow rate of 5 liters per minute.
The LabClear™ Disposable Gas Filter is offered only in the 200 cc capacity with the inline configuration, and is approximately 7" long by 2" in diameter. Both these units are designed for a nominal flow rate of 5 liters per minute.
