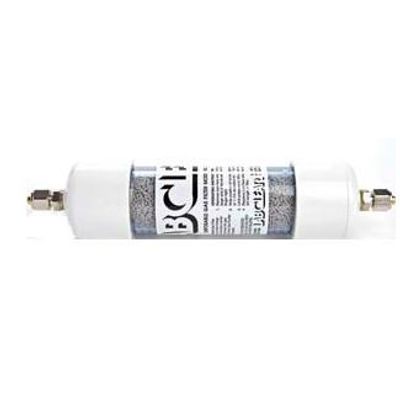

LabClear - Model DGF-125 -Disposable Filters

• Approximate length: 7 1/2"
• Approximate diameter: 2"
• Maximum operating pressure: 125 psi
• Maximum operating temperature: 100°C
• Nominal flow rate: 5 liters per minute
• Pressure drop: (5 mm water)/(liter per minute air flow)
• MSDS FORMS: 13X Beads & Indicating Drierite®

Both these models contain indicating Drierite® desiccant and #13X molecular sieve. The body of the filter is constructed of clear PVC for easy viewing of the Drierite® color indication, which changes color from blue to pink with the absorption of moisture and comes equipped with 1/8" or 1/4" brass male tube compression fittings. Each unit is tested at 125 psi, and can withstand temperatures up to 100°C.

The LabClear™ Disposable Gas Filter is offered only in the 200 cc capacity with the inline configuration, and is approximately 7" long by 2" in diameter. Both these units are designed for a nominal flow rate of 5 liters per minute.
